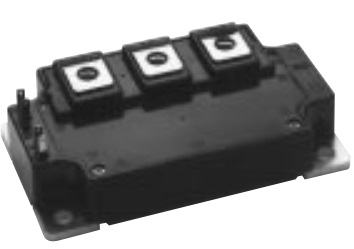

CM200DU-24H Mitsubishi - IGBT Module

CM200DU-24H Description

The Mitsubishi Electric CM200DU-24H is an IGBT module, rated for 1200 V and 200 A. It is built with two switches in a half-bridge (2-in-1) arrangement. It is a common choice for inverter stages in AC drives, servo systems, welders and uninterruptible power supplies. Many of these parts are still in service in machines built years ago, and a direct replacement is often the fastest way to get one running again.

Need the CM200DU-24H? USComponent stocks and sources power modules for repair shops, OEMs and maintenance teams worldwide. Request a quote and we'll confirm availability and lead time. Always compare against the datasheet before ordering.

Target Applications

Mitsubishi CM200DU-24H is used for AC Motor Controls, Motion/Servo Control, UPS and Welding Power Supplies.

Key Specifications

Manufacturer	Mitsubishi Electric
Configuration	Dual - two IGBTs in half-bridge configuration with free-wheel diodes
Series	H-Series
VCES	1200 V
IC	200 A (TC = 25 °C)
ICM (peak)	400 A
VCE(sat) typ.	2.9 V @ 200 A
Isolation voltage	2500 Vrms (AC, 1 min)
Terminal torque	M6: 3.5 - 4.5 N·m
Mounting torque	M6: 3.5 - 4.5 N·m
Weight	400 g
Junction temperature	-40 to +150 °C
