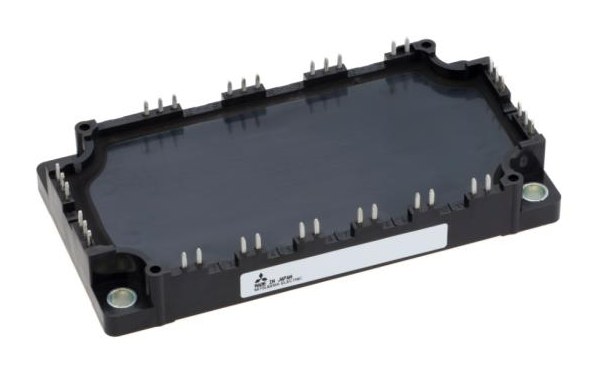

CM150TXP-24T Mitsubishi - IGBT Module

CM150TXP-24T Description

CM150TXP-24T is a 1200 V / 150 A six-pack (3-phase inverter) IGBT module from Mitsubishi Electric (NX Type package). Typical applications: AC Motor Control, Motion/Servo Control, Power supply.

USComponent supplies CM150TXP-24T and other Mitsubishi power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

Target Applications

Mitsubishi CM150TXP-24T is used for AC Motor Control, Motion/Servo Control, Power supply.

Key Specifications

CM150TXP-24T is a 1200 V / 150 A six-pack (3-phase inverter) IGBT module from Mitsubishi Electric. Source: Mitsubishi Electric datasheet and product list.

Parameter	Value
Manufacturer	Mitsubishi Electric
Product type	IGBT module
Series	T series
Configuration	Six-pack (3-phase inverter)
Collector-emitter voltage (VCES)	1200 V
Collector current (IC)	150 A
Isolation voltage (Viso)	2,500 V RMS
Package	NX Type
Package size	62 x 122 mm
Supply status (Mitsubishi)	Active
Datasheet	Available on this page (PDF)

Note: the Mitsubishi datasheet covers CM150TX-24T / CM150TXP-24T.

Technical document (PDF)  |  Request a quote for CM150TXP-24T (reply within 24 hours)
