CM150TU-12FMitsubishi - IGBT Module

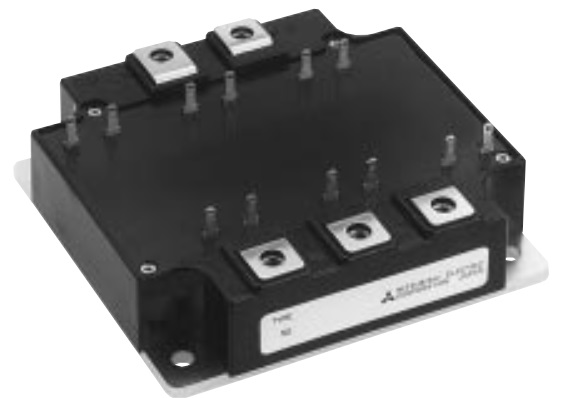

CM150TU-12F Description

The Mitsubishi Electric CM150TU-12F is an IGBT module rated at 600 V and 150 A, available from USComponent. This type of device is widely used in variable-frequency motor drives, servo drives, UPS systems, welding machines, induction heating and solar or wind inverters.

USComponent, a BBB A+ accredited business, helps engineers and maintenance teams source power semiconductors and industrial components, including older and hard-to-find part numbers. Please confirm ratings, package and pin-out against the manufacturer's datasheet before ordering, and request a quote for current pricing and lead time on the CM150TU-12F.

Target Applications

Mitsubishi CM150TU-12F is used for General purpose inverters & Servo controls, etc.

Key Specifications

Manufacturer	Mitsubishi Electric
Configuration	Six-pack - six IGBTs in three-phase bridge configuration with free-wheel diodes
Series	F-Series
VCES	600 V
IC	150 A (TC = 25 °C)
ICM (peak)	300 A
VCE(sat) typ.	1.6 V @ 150 A
Isolation voltage	2500 Vrms (AC, 1 min)
Terminal torque	M5: 2.5 - 3.5 N·m
Mounting torque	M5: 2.5 - 3.5 N·m
Weight	680 g
Junction temperature	-40 to +150 °C
