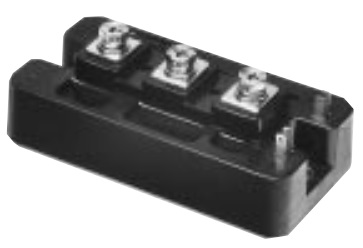

CM150DY-12E Mitsubishi - IGBT Power Transistor Module

CM150DY-12E Description

The CM150DY-12E from Mitsubishi Electric is an IGBT module with a 600 V / 150 A rating. Inside, it has two switches in a half-bridge (2-in-1) arrangement. It is a common choice for inverter stages in AC drives, servo systems, welders and uninterruptible power supplies. Production of many older modules has ended, but we keep sourcing them for repair and maintenance customers.

USComponent has been supplying power semiconductors since 2001, including discontinued and hard-to-find part numbers. Send us an RFQ for the CM150DY-12E and we will reply with price, condition and lead time. Please check the manufacturer's datasheet to confirm ratings, package and pin-out before you order.

Summary of Features

Target Applications

Mitsubishi CM150DY-12E is used for inverters and AC motor drives, servo drives, UPS systems, welding machines, induction heating, solar and wind power converters and other high-power switching equipment.

Key Specifications

Manufacturer	Mitsubishi Electric
Configuration	Dual / half-bridge (2-in-1)
VCES	600 V
IC nom	150 A
Similar-rating parts	2MBI150NC-060, BSM150GB60DLC, 2MBI150-060, CM150DY-12NF, CM150DU-12F, CM150DU-12H, CM150DY12E (same nominal voltage and current rating, for reference only. Package, pinout and characteristics may differ; please compare datasheets to determine suitability)
