VUO192-16NO7 IXYS - Rectifier Bridge

Category: Bridge Rectifiers

Specifications: 1600V, 240A

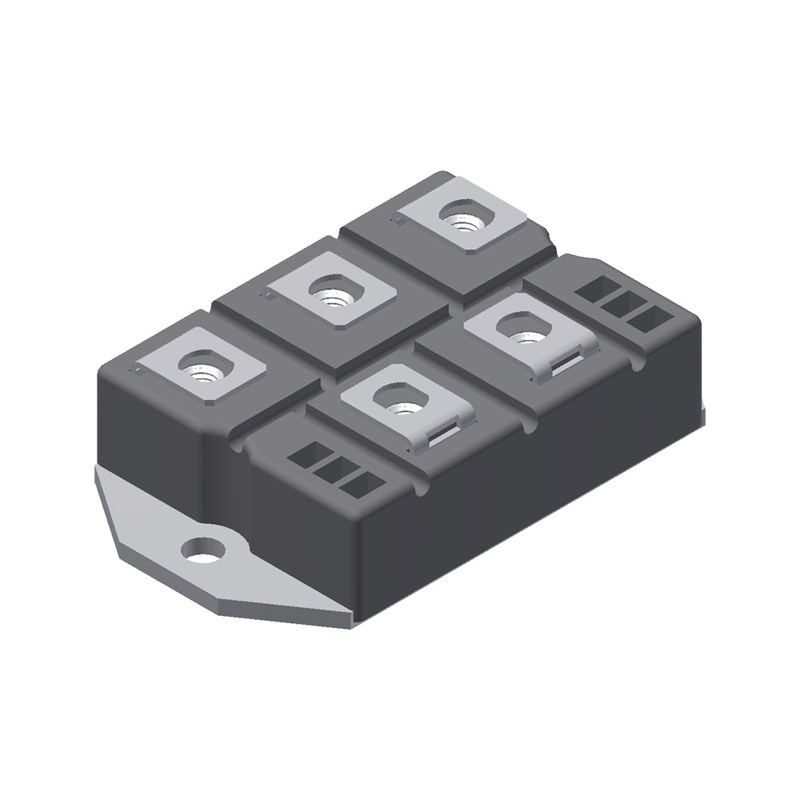

VUO192-16NO7 IXYS Rectifier Bridge

Representative image – actual product may differ

Availability and lead time are confirmed in our quote.

  • ✓ Quote within 24 hours
  • ✓ Original manufacturer parts, inspected before shipping
  • ✓ Credit cards and NET terms accepted

Or email sales@uscomponent.com or call 1-281-968-0718.

VUO192-16NO7 Description

VUO192-16NO7 is a 1600 V / 240 A rectifier bridge module from IXYS (PWS-E Flat package). Typical applications: diode for main rectification, For three phase bridge configurations, Supplies for DC power equipment, Input rectifiers for PWM inverter, Battery DC power supplies, Field supply for DC motors.

USComponent supplies VUO192-16NO7 and other IXYS power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

  • Package with DCB ceramic
  • Improved temperature and power cycling
  • Planar passivated chips
  • Very low forward voltage drop
  • Very low leakage current

Target Applications

IXYS VUO192-16NO7 is used for Diode for main rectification, For three phase bridge configurations, Supplies for DC power equipment, Input rectifiers for PWM inverter, Battery DC power supplies, Field supply for DC motors.

Key Specifications

VUO192-16NO7 is a 1600 V / 240 A rectifier bridge module from IXYS (now part of Littelfuse) in a PWS-E Flat package. Source: IXYS (Littelfuse) datasheet and product data.

ParameterValue
ManufacturerIXYS (Littelfuse)
Product typeRectifier bridge module
ConfigurationThree-phase rectifier bridge
Repetitive peak reverse voltage (VRRM)1600 V
Average output current (IdAV)240 A
PackagePWS-E Flat
Isolation voltage3000 V~
Weight225 g
Supply statusActive
DatasheetAvailable on this page (PDF)

Technical document (PDF)  |  Request a quote for VUO192-16NO7 (reply within 24 hours)
