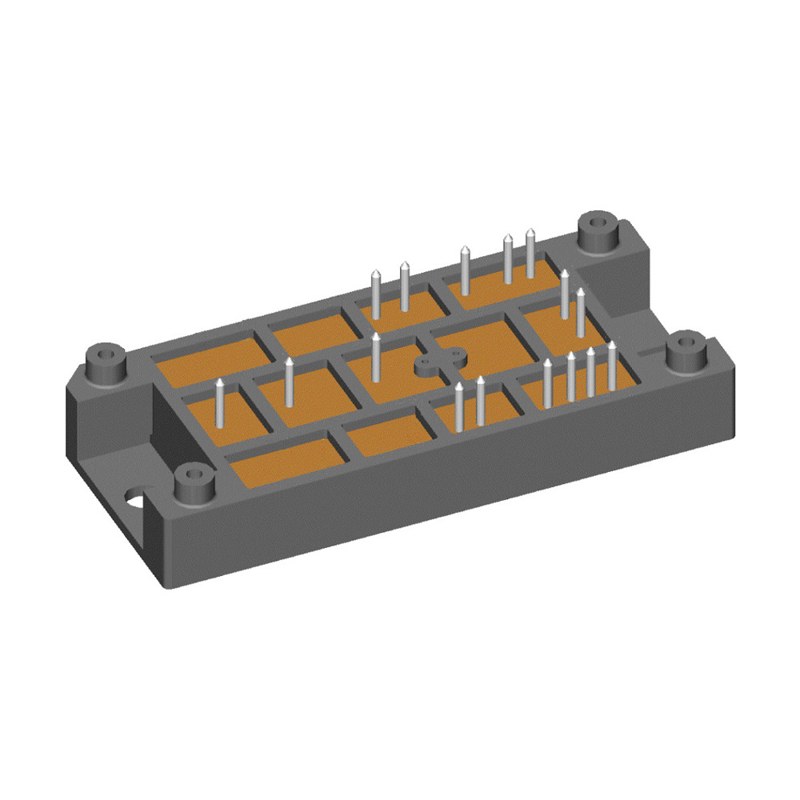

VUB120-16NOXT IXYS - Rectifier Bridge
VUB120-16NOXT Description
VUB120-16NOXT is a 1600 V / 180 A rectifier bridge module from IXYS (V2-Pack package). Typical applications: 3~ Rectifier with brake unit for drive inverters.
USComponent supplies VUB120-16NOXT and other IXYS power modules. Request a quote for price and lead time - we reply within 24 hours.
Summary of Features
- Package with DCB ceramic base plate
- Improved temperature and power cycling
- Planar passivated chips
- Very low forward voltage drop
- Very low leakage current
- X2PT - 2nd generation Xtreme light Punch Through
- Short circuit rated for 10 µsec.
- Very low gate charge
- Low EMI
- Square RBSOA @ 2x Ic
Target Applications
IXYS VUB120-16NOXT is used for 3~ Rectifier with brake unit for drive inverters.
Key Specifications
VUB120-16NOXT is a 1600 V / 180 A rectifier bridge module from IXYS (now part of Littelfuse) in a V2-Pack package. Source: IXYS (Littelfuse) datasheet and product data.
| Parameter | Value |
|---|---|
| Manufacturer | IXYS (Littelfuse) |
| Product type | Rectifier bridge module |
| Configuration | Three-phase rectifier bridge + Brake Unit + NTC |
| Repetitive peak reverse voltage (VRRM) | 1600 V |
| Average output current (IdAV) | 180 A |
| Package | V2-Pack |
| Isolation voltage | 3600 V~ |
| Weight | 80 g |
| Supply status | Active |
| Datasheet | Available on this page (PDF) |
Technical document (PDF) | Request a quote for VUB120-16NOXT (reply within 24 hours)
