VUB120-16NOX IXYS - Rectifier Bridge

Category: Bridge Rectifiers

Specifications: 1600V, 180A

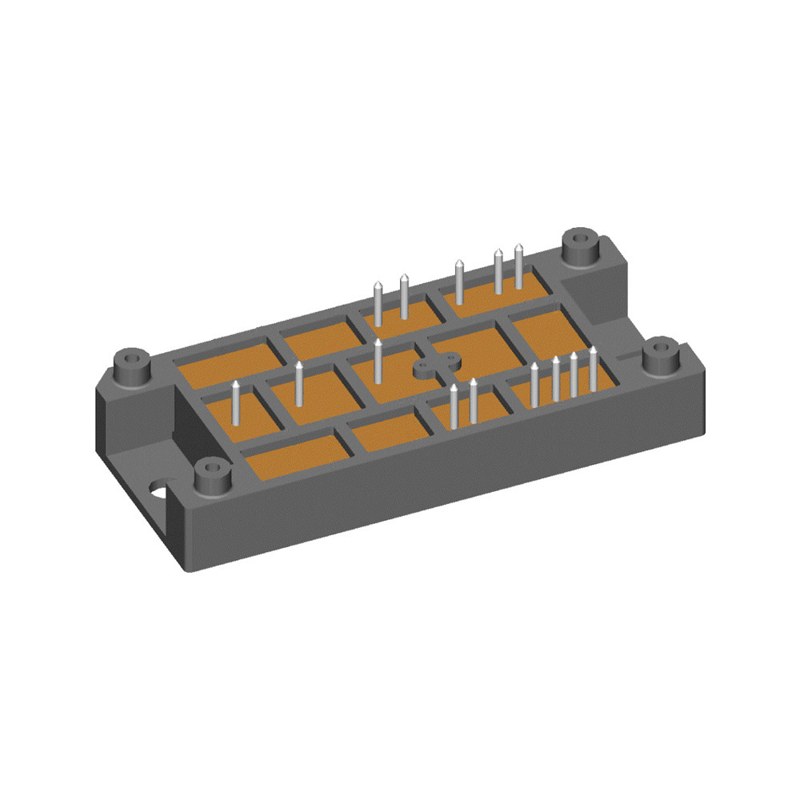

VUB120-16NOX IXYS Rectifier Bridge

Representative image – actual product may differ

Availability and lead time are confirmed in our quote.

  • ✓ Quote within 24 hours
  • ✓ Original manufacturer parts, inspected before shipping
  • ✓ Credit cards and NET terms accepted

Or email sales@uscomponent.com or call 1-281-968-0718.

VUB120-16NOX Description

VUB120-16NOX is a 1600 V / 180 A rectifier bridge module from IXYS (V2-Pack package). Typical applications: 3~ Rectifier with brake unit for drive inverters.

USComponent supplies VUB120-16NOX and other IXYS power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

  • Package with DCB ceramic base plate
  • Improved temperature and power cycling
  • Planar passivated chips
  • Very low forward voltage drop
  • Very low leakage current
  • X2PT - 2nd generation Xtreme light Punch Through
  • Short circuit rated for 10 µsec.
  • Very low gate charge
  • Low EMI
  • Square RBSOA @ 2x Ic

Target Applications

IXYS VUB120-16NOX is used for 3~ Rectifier with brake unit for drive inverters.

Key Specifications

VUB120-16NOX is a 1600 V / 180 A rectifier bridge module from IXYS (now part of Littelfuse) in a V2-Pack package. Source: IXYS (Littelfuse) datasheet and product data.

ParameterValue
ManufacturerIXYS (Littelfuse)
Product typeRectifier bridge module
ConfigurationThree-phase rectifier bridge + Brake Unit
Repetitive peak reverse voltage (VRRM)1600 V
Average output current (IdAV)180 A
PackageV2-Pack
Isolation voltage3600 V~
Weight80 g
Supply statusActive
DatasheetAvailable on this page (PDF)

Technical document (PDF)  |  Request a quote for VUB120-16NOX (reply within 24 hours)

Related Part Numbers

VUB160-16NOX
1600V, 180A		VUB120-16NOXT
1600V, 180A		VUB116-16NOXT
1600V, 120A		VUB145-16NOXT
1600V, 150A
VUB160-16NOXT
1600V, 180A		VUB72-16NOXT
1600V, 75A		VUB72-12NOXT
1200V, 75A		VUB135-22NO1
2200V, 150A
VUB60-12N01
1200(V) / 31(A)		VUB60-16N01
1600(V) / 60(A)		VUC25-12VUC25-12G02
1200V, 40.82A
VUC25-14G02
1400V, 42A
