MPK95-06DA IXYS - Diode Module

Category: Diode & Rectifier Modules

Specifications: 600V, 95A

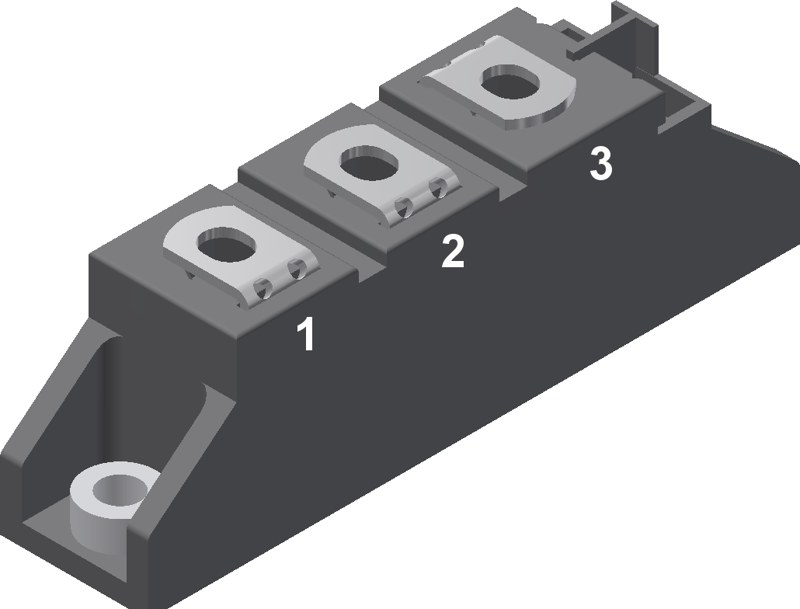

MPK95-06DA IXYS Diode Module

Representative image – actual product may differ

Availability and lead time are confirmed in our quote.

  • ✓ Quote within 24 hours
  • ✓ Original manufacturer parts, inspected before shipping
  • ✓ Credit cards and NET terms accepted

Or email sales@uscomponent.com or call 1-281-968-0718.

MPK95-06DA Description

MPK95-06DA is a 600 V / 95 A fast recovery diode (FRED) module from IXYS (TO-240AA package). Typical applications: antiparallel diode for high frequency switching devices, Antisaturation diode, Snubber diode, Free wheeling diode, Rectifiers in switch mode power supplies (SMPS), Uninterruptible power supplies (UPS).

USComponent supplies MPK95-06DA and other IXYS power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

  • Planar passivated chips
  • Very low leakage current
  • Very short recovery time
  • Improved thermal behaviour
  • Very low Irm-values
  • Very soft recovery behaviour
  • Avalanche voltage rated for reliable operation
  • Soft reverse recovery for low EMI/RFI
  • Power dissipation within the diode
  • Turn-on loss in the commutating switch

Target Applications

IXYS MPK95-06DA is used for Antiparallel diode for high frequency switching devices, Antisaturation diode, Snubber diode, Free wheeling diode, Rectifiers in switch mode power supplies (SMPS), Uninterruptible power supplies (UPS).

Key Specifications

MPK95-06DA is a 600 V / 95 A fast recovery diode (FRED) module from IXYS (now part of Littelfuse) in a TO-240AA package. Source: IXYS (Littelfuse) datasheet and product data.

ParameterValue
ManufacturerIXYS (Littelfuse)
Product typeFast recovery diode (FRED) module
ConfigurationCommon Cathode
Repetitive peak reverse voltage (VRRM)600 V
Average forward current (IFAV)95 A
PackageTO-240AA
Isolation voltage4800 V~
Weight90 g
Supply statusObsolete
DatasheetAvailable on this page (PDF)

Status: IXYS / Littelfuse lists MPK95-06DA as obsolete. USComponent can still source MPK95-06DA and help you find a suitable alternative.

Technical document (PDF)  |  Request a quote for MPK95-06DA (reply within 24 hours)
