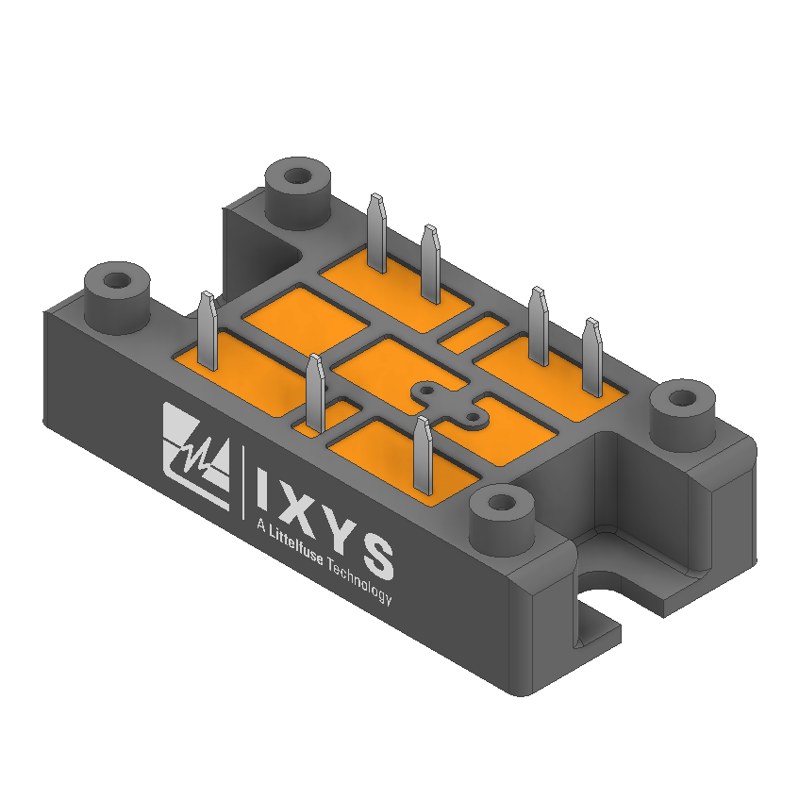

MDMA120U1600VA IXYS - Rectifier Bridge

MDMA120U1600VA Description

MDMA120U1600VA is a 1600 V / 120 A rectifier bridge module from IXYS (V1-A-Pack package). Typical applications: diode for main rectification, For three phase bridge configurations, Supplies for DC power equipment, Input rectifiers for PWM inverter, Battery DC power supplies, Field supply for DC motors.

USComponent supplies MDMA120U1600VA and other IXYS power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

Target Applications

IXYS MDMA120U1600VA is used for Diode for main rectification, For three phase bridge configurations, Supplies for DC power equipment, Input rectifiers for PWM inverter, Battery DC power supplies, Field supply for DC motors.

Key Specifications

MDMA120U1600VA is a 1600 V / 120 A rectifier bridge module from IXYS (now part of Littelfuse) in a V1-A-Pack package. Source: IXYS (Littelfuse) datasheet and product data.

Parameter	Value
Manufacturer	IXYS (Littelfuse)
Product type	Rectifier bridge module
Configuration	Three-phase rectifier bridge
Repetitive peak reverse voltage (VRRM)	1600 V
Average output current (IdAV)	120 A
Package	V1-A-Pack
Isolation voltage	3600 V~
Weight	37 g
Supply status	Active
Datasheet	Available on this page (PDF)
