MCMA450UH1600TEH IXYS - Rectifier Bridge

Category: Bridge Rectifiers

Specifications: 1600V, 450A

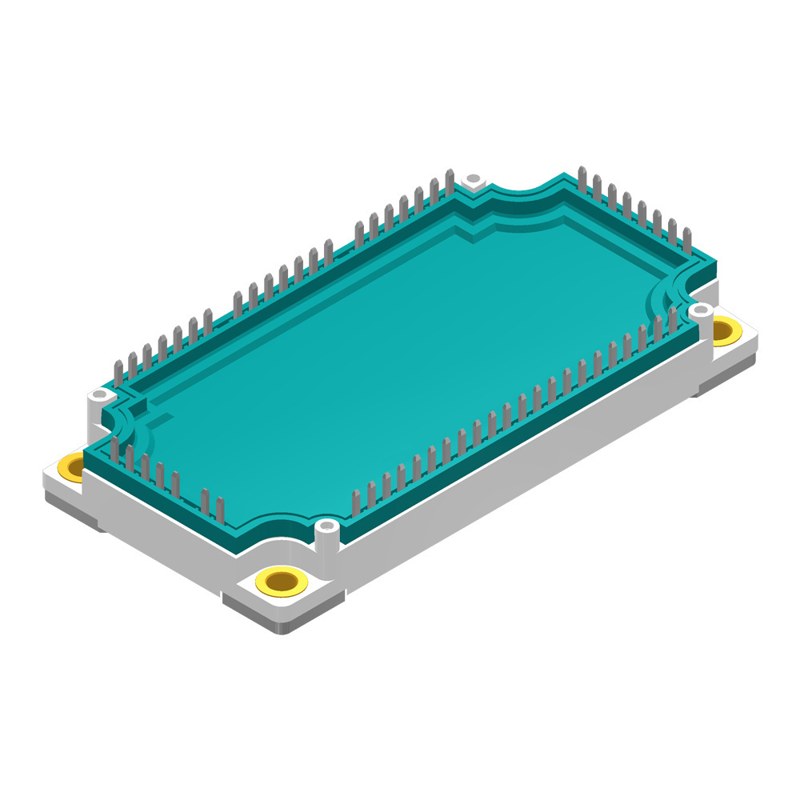

MCMA450UH1600TEH IXYS Rectifier Bridge

Representative image – actual product may differ

Availability and lead time are confirmed in our quote.

  • ✓ Quote within 24 hours
  • ✓ Original manufacturer parts, inspected before shipping
  • ✓ Credit cards and NET terms accepted

Or email sales@uscomponent.com or call 1-281-968-0718.

MCMA450UH1600TEH Description

MCMA450UH1600TEH is a 1600 V / 450 A rectifier bridge module from IXYS (E3-Pack package). Typical applications: 3~ half-controlled Rectifier for drive inverters.

USComponent supplies MCMA450UH1600TEH and other IXYS power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

  • Package with DCB ceramic
  • Improved temperature and power cycling
  • Planar passivated chips
  • Very low forward voltage drop
  • Very low leakage current

Target Applications

IXYS MCMA450UH1600TEH is used for 3~ half-controlled Rectifier for drive inverters.

Key Specifications

MCMA450UH1600TEH is a 1600 V / 450 A rectifier bridge module from IXYS (now part of Littelfuse) in a E3-Pack package. Source: IXYS (Littelfuse) datasheet and product data.

ParameterValue
ManufacturerIXYS (Littelfuse)
Product typeRectifier bridge module
ConfigurationThree-phase rectifier bridge, half-controlled (high-side) + NTC
Repetitive peak reverse voltage (VRRM)1600 V
Average output current (IdAV)450 A
PackageE3-Pack
Isolation voltage4300 V~
Weight270 g
Supply statusActive
DatasheetAvailable on this page (PDF)

Technical document (PDF)  |  Request a quote for MCMA450UH1600TEH (reply within 24 hours)
