MCMA550PD1600PTSF IXYS - Thyristor / Diode Module

Category: Thyristor & SCR Modules

Specifications: 1600V, 550A

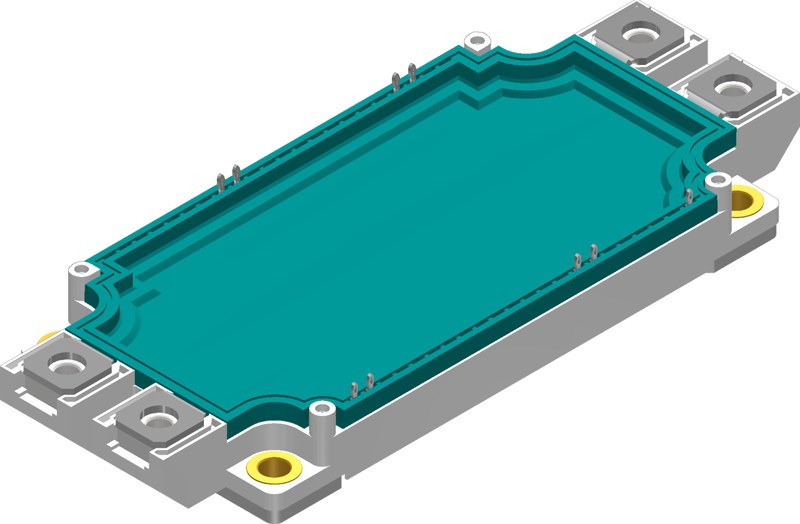

MCMA550PD1600PTSF IXYS Thyristor / Diode Module

Representative image – actual product may differ

Availability and lead time are confirmed in our quote.

  • ✓ Quote within 24 hours
  • ✓ Original manufacturer parts, inspected before shipping
  • ✓ Credit cards and NET terms accepted

Or email sales@uscomponent.com or call 1-281-968-0718.

MCMA550PD1600PTSF Description

MCMA550PD1600PTSF is a 1600 V / 550 A thyristor / diode module from IXYS (SimBus F package). Typical applications: line rectifying 50/60 Hz, Softstart AC motor control, DC Motor control, Power converter, AC power control, Lighting and temperature control.

USComponent supplies MCMA550PD1600PTSF and other IXYS power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

  • Thyristor for line frequency
  • Planar passivated chip
  • Long-term stability
  • Direct Copper Bonded Al2O3-ceramic

Target Applications

IXYS MCMA550PD1600PTSF is used for Line rectifying 50/60 Hz, Softstart AC motor control, DC Motor control, Power converter, AC power control, Lighting and temperature control.

Key Specifications

MCMA550PD1600PTSF is a 1600 V / 550 A thyristor / diode module from IXYS (now part of Littelfuse) in a SimBus F package. Source: IXYS (Littelfuse) datasheet and product data.

ParameterValue
ManufacturerIXYS (Littelfuse)
Product typeThyristor / diode module
ConfigurationPhase leg + NTC
Repetitive peak reverse voltage (VRRM)2 x 1600 V
Average on-state current (ITAV)550 A
PackageSimBus F
Isolation voltage4300 V~
Weight350 g
Supply statusActive
DatasheetAvailable on this page (PDF)

Technical document (PDF)  |  Request a quote for MCMA550PD1600PTSF (reply within 24 hours)
