DNA90YA2200NA IXYS - Rectifier Bridge

Category: Bridge Rectifiers

Specifications: 2200V, 90A

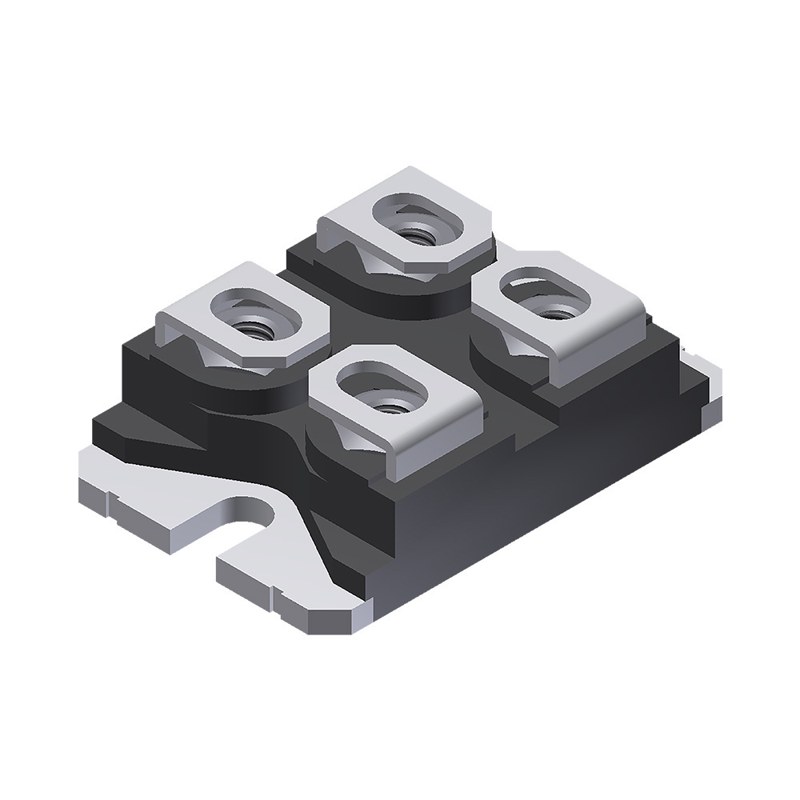

DNA90YA2200NA IXYS Rectifier Bridge

Representative image – actual product may differ

We beat competitor's price with faster delivery.

For 6 pieces or more, submit your inquiry here, email to sales@uscomponent.com or call 1-281-968-0718

DNA90YA2200NA Description

DNA90YA2200NA is a 2200 V / 90 A rectifier bridge module from IXYS (SOT-227B (minibloc) package). Typical applications: diode for main rectification, For single and three phase bridge configurations.

USComponent supplies DNA90YA2200NA and other IXYS power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

  • Planar passivated chips
  • Very low leakage current
  • Very low forward voltage drop
  • Improved thermal behaviour

Target Applications

IXYS DNA90YA2200NA is used for Diode for main rectification, For single and three phase bridge configurations.

Key Specifications

DNA90YA2200NA is a 2200 V / 90 A rectifier bridge module from IXYS (now part of Littelfuse) in a SOT-227B (minibloc) package. Source: IXYS (Littelfuse) datasheet and product data.

ParameterValue
ManufacturerIXYS (Littelfuse)
Product typeRectifier bridge module
ConfigurationHalf Three-phase Bridge, Common Anode
Repetitive peak reverse voltage (VRRM)2200 V
Average output current (IdAV)90 A
PackageSOT-227B (minibloc)
Isolation voltage3000 V~
Weight30 g
Supply statusActive
DatasheetAvailable on this page (PDF)

Technical document (PDF)  |  Request a quote for DNA90YA2200NA (reply within 24 hours)

Related Part Numbers

DNA90YC2200NADNA40U2200GU
