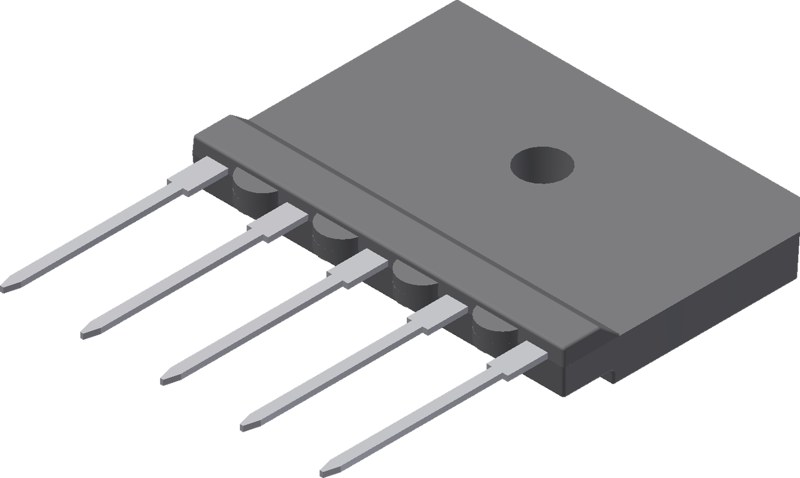

DNA40U2200GU IXYS - Rectifier Bridge

DNA40U2200GU Description

DNA40U2200GU is a 2200 V / 40 A rectifier bridge module from IXYS (GUFP package). Typical applications: supplies for DC power equipment, Input rectifiers for PWM inverter, Battery DC power supplies, Field supply for DC motors.

USComponent supplies DNA40U2200GU and other IXYS power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

Target Applications

IXYS DNA40U2200GU is used for Supplies for DC power equipment, Input rectifiers for PWM inverter, Battery DC power supplies, Field supply for DC motors.

Key Specifications

DNA40U2200GU is a 2200 V / 40 A rectifier bridge module from IXYS (now part of Littelfuse) in a GUFP package. Source: IXYS (Littelfuse) datasheet and product data.

Parameter	Value
Manufacturer	IXYS (Littelfuse)
Product type	Rectifier bridge module
Configuration	Three-phase rectifier bridge
Repetitive peak reverse voltage (VRRM)	2200 V
Average output current (IdAV)	40 A
Package	GUFP
Isolation voltage	2500 V~
Weight	6 g
Supply status	Active
Datasheet	Available on this page (PDF)

Technical document (PDF)  |  Request a quote for DNA40U2200GU (reply within 24 hours)
