DLA100B1200LB IXYS - Rectifier Bridge

Category: Bridge Rectifiers

Specifications: 1200V, 124A

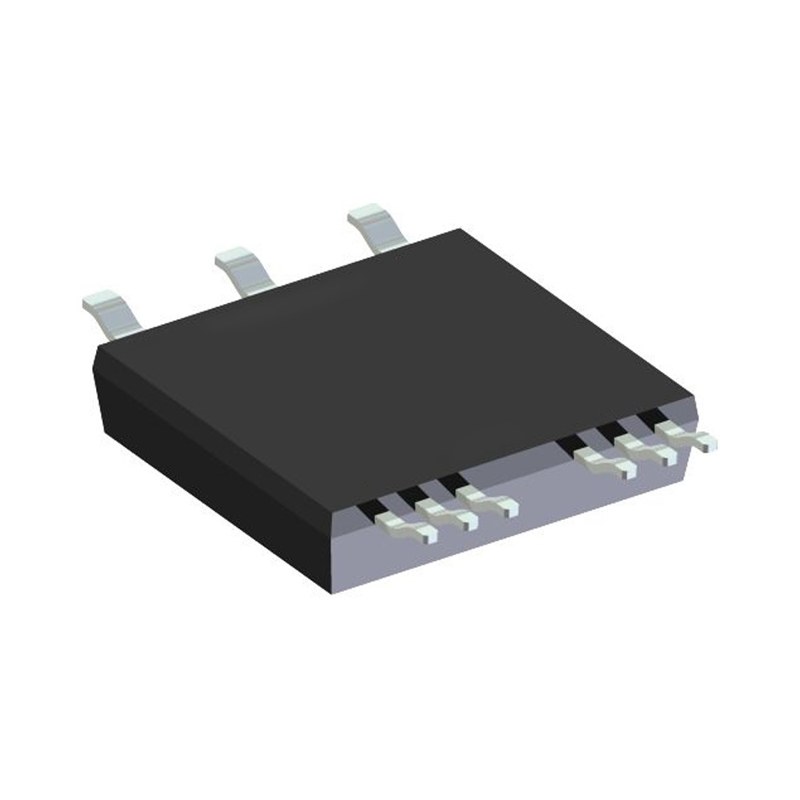

DLA100B1200LB IXYS Rectifier Bridge

Representative image – actual product may differ

We beat competitor's price with faster delivery.

For 6 pieces or more, submit your inquiry here, email to sales@uscomponent.com or call 1-281-968-0718

DLA100B1200LB Description

DLA100B1200LB is a 1200 V / 124 A rectifier bridge module from IXYS (SMPD package). Typical applications: diode Bridge for main rectification.

USComponent supplies DLA100B1200LB and other IXYS power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

  • Planar passivated chips
  • Very low leakage current
  • Very low forward voltage drop
  • Improved thermal behaviour

Target Applications

IXYS DLA100B1200LB is used for Diode Bridge for main rectification.

Key Specifications

DLA100B1200LB is a 1200 V / 124 A rectifier bridge module from IXYS (now part of Littelfuse) in a SMPD package. Source: IXYS (Littelfuse) datasheet and product data.

ParameterValue
ManufacturerIXYS (Littelfuse)
Product typeRectifier bridge module
ConfigurationSingle-phase rectifier bridge
Repetitive peak reverse voltage (VRRM)1200 V
Average output current (IdAV)124 A
PackageSMPD
Isolation voltage3000 V~
Weight12.1 g
Supply statusObsolete
DatasheetAvailable on this page (PDF)

Status: IXYS / Littelfuse lists DLA100B1200LB as obsolete. USComponent can still source DLA100B1200LB and help you find a suitable alternative.

Technical document (PDF)  |  Request a quote for DLA100B1200LB (reply within 24 hours)

Related Part Numbers

DLA100B800LBDLD2410DLD2425DLD2450
DLM02
