TZ630N16 Infineon - DUAL-SCR

Category: Thyristor & SCR Modules

Specifications: 1600V, 630A

TZ630N16, Eupec Infineon power module

Representative image – actual product may differ

Availability and lead time are confirmed in our quote.

  • ✓ Quote within 24 hours
  • ✓ Original manufacturer parts, inspected before shipping
  • ✓ Credit cards and NET terms accepted

Or email sales@uscomponent.com or call 1-281-968-0718.

TZ630N16 Description

The TZ630N16 from Infineon Technologies (formerly Eupec) is a thyristor module with a 1600 V / 630 A rating. It is used in phase-controlled rectifiers, soft starters, battery chargers and temperature controllers for furnaces and heaters. Production of many older modules has ended, but we keep sourcing them for repair and maintenance customers.

Request a quote for the TZ630N16 and our team will get back to you with price, quantity available and lead time. We ship worldwide. As with any power device, please check the manufacturer's datasheet to confirm it matches your design.

Target Applications

Infineon TZ630N16 is used for AC/DC power conversion and control: controlled and uncontrolled rectifiers, DC motor drives, soft starters, battery chargers, welding equipment, heater and temperature control, and AC power controllers.

Key Specifications

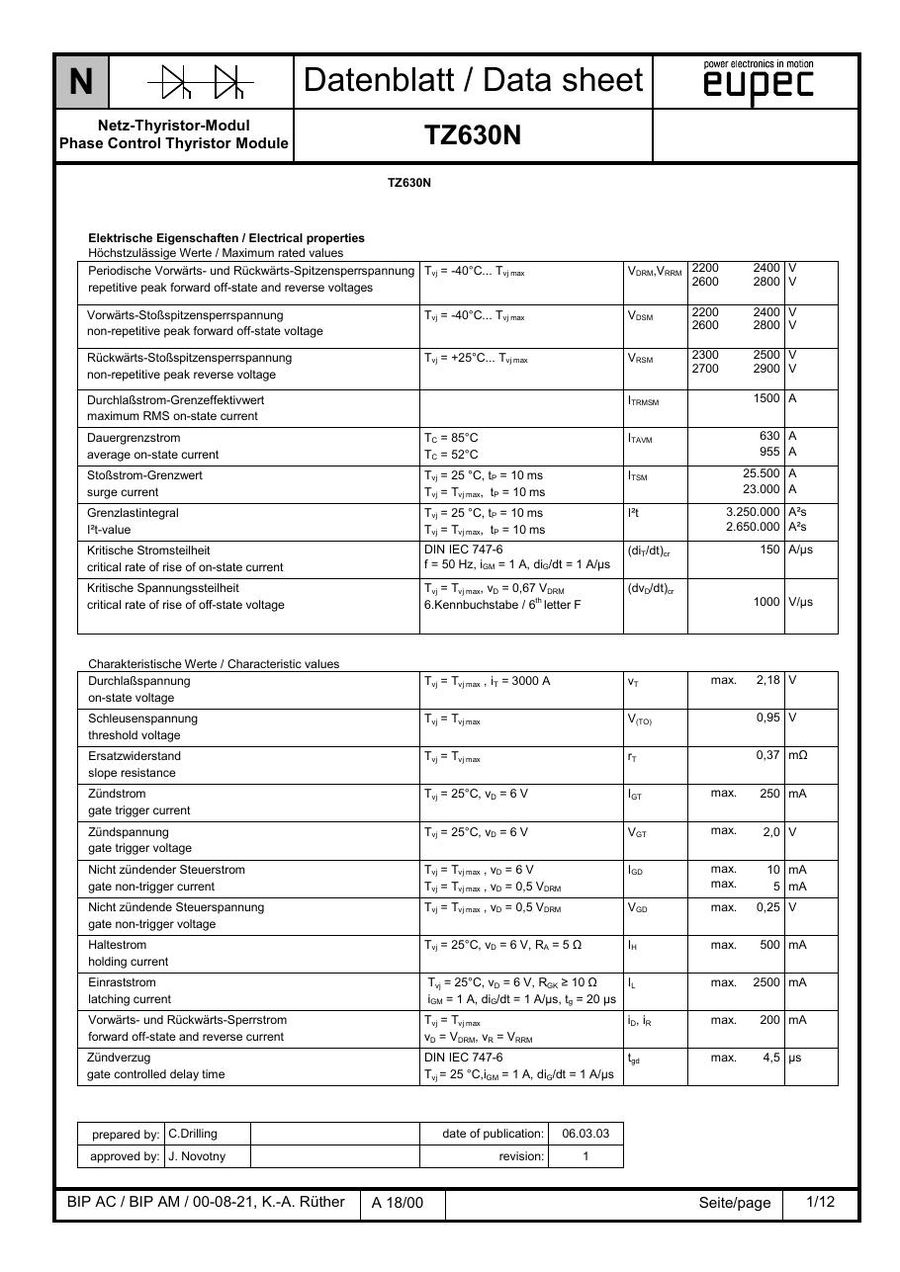

TZ630N16 is an eupec (Infineon) PowerBLOCK single thyristor module. Source: eupec Power Semiconductors Shortform Catalog 2003 (catalog page available on this page as PDF).

ParameterValue
Manufacturereupec (Infineon Technologies)
Product typePowerBLOCK single thyristor module
Repetitive peak off-state / reverse voltage (VDRM / VRRM), series range2200 to 2800 V
Average on-state current (ITAVM), 180° el sin630 A at Tc = 85 °C
RMS current (ITRMSM)1500 A
Surge current (ITSM), 10 ms, Tvj max23000 A
I²t, 10 ms, Tvj max2650 × 10³ A²s
Threshold voltage V(T0)0.95 V
Slope resistance rT0.37 mΩ
Critical rate of rise of on-state current (di/dt)cr150 A/µs
Turn-off time tq, typ.400 µs
Critical rate of rise of off-state voltage (dv/dt)cr1000 V/µs
Thermal resistance RthJC0.042 °C/W
Thermal resistance RthCK0.01 °C/W
Max. junction temperature Tvj max125 °C
Package (outline)TP70

Technical document (PDF)  |  Request a quote for TZ630N16 (reply within 24 hours)

Related Part Numbers

TZ600N16
1600V, 600A		TZ630N18
1800V, 630A		TZ630N20
2000V, 630A		TZ500N16
1600V, 500A
TZ630N12
1200V, 630A		TZ430N16
1600V, 430A		TZ425N16
1600V, 425A		TZ400N16
1600V, 400A
TZ630N22KOF
2200V, 630A		TZ630N24KOF
2400V, 630A		TZ630N28KOF
2800V, 630A		TZ600N20
2000V, 600A
TZ600N18KOF
600A / 1800V		TZ600N18
1800V, 600A		TZ600N16KOFHPSA1
1600V, 600A		TZ600N16KOF
1600V, 600A
