ND600N18 Infineon - Power Transistor Module
ND600N18 Description
Infineon Technologies (formerly Eupec) makes the ND600N18, a thyristor (SCR). Common uses are AC switches, soft starters, DC drives and controlled rectifiers in industrial power equipment.
USComponent (Young & New Century LLC) supplies power modules, thyristors, diodes and other industrial components, including legacy parts. Contact us for a quote on the ND600N18, and please confirm ratings against the datasheet before ordering.
Target Applications
Infineon ND600N18 is used for motor drives and inverters, servo amplifiers, UPS systems, welding machines and other industrial power switching equipment.
Key Specifications

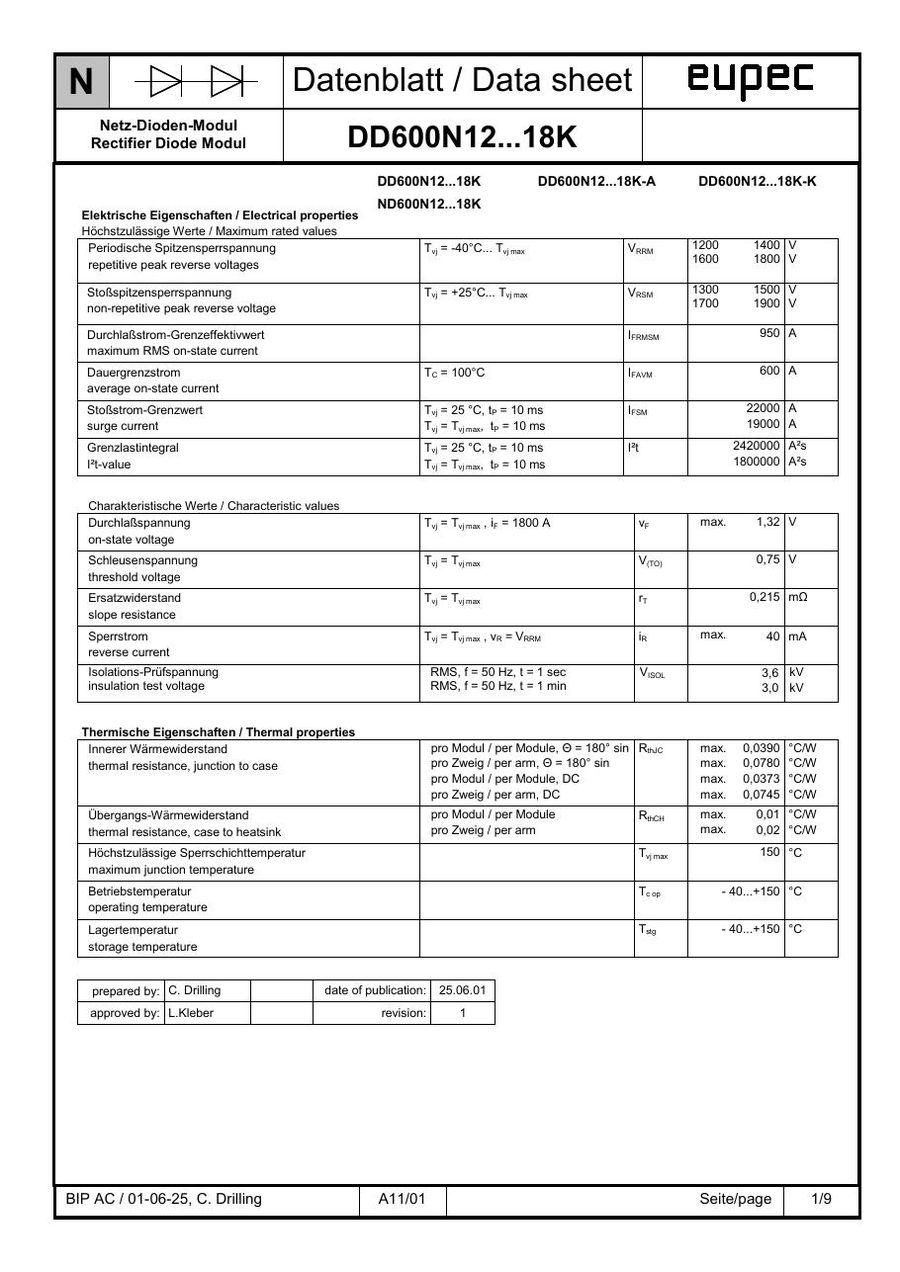

ND600N18 is an eupec (Infineon) PowerBLOCK diode module. Source: eupec Power Semiconductors Shortform Catalog 2003 (catalog page available on this page as PDF).
| Parameter | Value |
|---|---|
| Manufacturer | eupec (Infineon Technologies) |
| Product type | PowerBLOCK diode module |
| Repetitive peak reverse voltage (VRRM) | 1800 V (series 1200 to 1800 V) |
| Average forward current (IFAVM), 180° el sin | 600 A at Tc = 100 °C |
| RMS current (IFRMSM) | 950 A |
| Surge current (IFSM), 10 ms, Tvj max | 19000 A |
| I²t, 10 ms, Tvj max | 1800 × 10³ A²s |
| Threshold voltage V(T0) | 0.75 V |
| Slope resistance rT | 0.215 mΩ |
| Thermal resistance RthJC | 0.078 °C/W |
| Thermal resistance RthCK | 0.02 °C/W |
| Max. junction temperature Tvj max | 150 °C |
| Package (outline) | DP60 |
Technical document (PDF) | Request a quote for ND600N18 (reply within 24 hours)
Related Part Numbers
| ND600N16 1600V, 600A | ND600N14 1400V, 600A | ND600N12 1200V, 600A | ND350N18 1800V, 350A |
| ND260N18 1800V, 260A | ND350N12 1200V, 350A | ND350N16 1600V, 350A | ND350N14 1400V, 350A |
| ND600N18K 1800V, 600A | ND600N16K 1600V, 600A | ND600N14K 1400V, 600A | ND600N12K 1200V, 600A |
| ND600N06K 600V, 600A | ND600N04K 400V, 600A | ND600N02K 200V, 600A | ND89N08K 800V |
