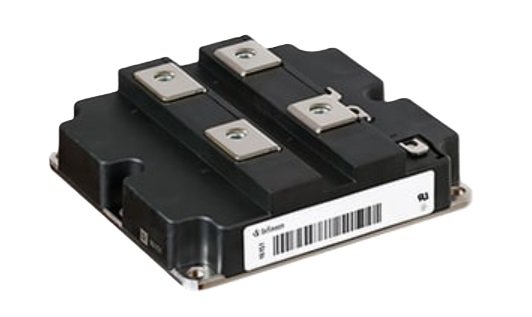

FZ800R12KS4Infineon - IGBT Module

FZ800R12KS4 Description

The Infineon Technologies FZ800R12KS4 is an IGBT module rated at 1200 V and 1200 A. Typical applications for this type of device include variable-frequency motor drives, servo drives, UPS systems, welding machines, induction heating and solar or wind inverters.

USComponent supplies power semiconductors and industrial electronic components to engineers, OEMs and maintenance teams worldwide, including legacy and hard-to-find part numbers. Please confirm ratings, package and pin-out against the manufacturer's datasheet before ordering, and request a quote for current pricing and lead time on the FZ800R12KS4.

Target Applications

Infineon FZ800R12KS4 is used for inverters and AC motor drives, servo drives, UPS systems, welding machines, induction heating, solar and wind power converters and other high-power switching equipment.

Key Specifications

Manufacturer	Infineon Technologies (eupec)
Configuration	Single switch - IGBT with free-wheeling diode
Technology	Fast IGBT2 (KS4)
VCES	1200 V
IC	800 A (TC = 80 °C) / 1200 A (TC = 25 °C)
ICRM	1600 A (tp = 1 ms, TC = 80 °C)
VCE(sat) typ.	3.20 V @ 800 A
Isolation test voltage	3 kV RMS, 50 Hz, 1 min
Mounting torque	4.25 - 5.75 Nm
Terminal torque	M4: 1.7 - 2.3 Nm; M8: 8 - 10 Nm
Weight	1000 g
