FZ3600R17HP4Infineon - IGBT Module

FZ3600R17HP4 Description

The Infineon Technologies FZ3600R17HP4 is an IGBT module rated at 1700 V and 3600 A, available from USComponent. Typical applications for this type of device include variable-frequency motor drives, servo drives, UPS systems, welding machines, induction heating and solar or wind inverters.

USComponent specializes in sourcing power modules and industrial electronic components, including legacy and hard-to-find parts for repair and maintenance. Please confirm ratings, package and pin-out against the manufacturer's datasheet before ordering, and request a quote for current pricing and lead time on the FZ3600R17HP4.

Summary of Features

Target Applications

Infineon FZ3600R17HP4 is used for Drives, Wind, Solar, CAV and UPS.

Key Specifications

FZ3600R17HP4 is a 1,700 V, 3600 A IGBT module, single switch configuration. Source: manufacturer datasheet.

Parameter	Value
Product type	IGBT module
Configuration	Single switch
Collector-emitter voltage (VCES)	1,700 V
Collector current (IC)	3600 A
Datasheet	Available on this page (PDF)

Download FZ3600R17HP4 Datasheet

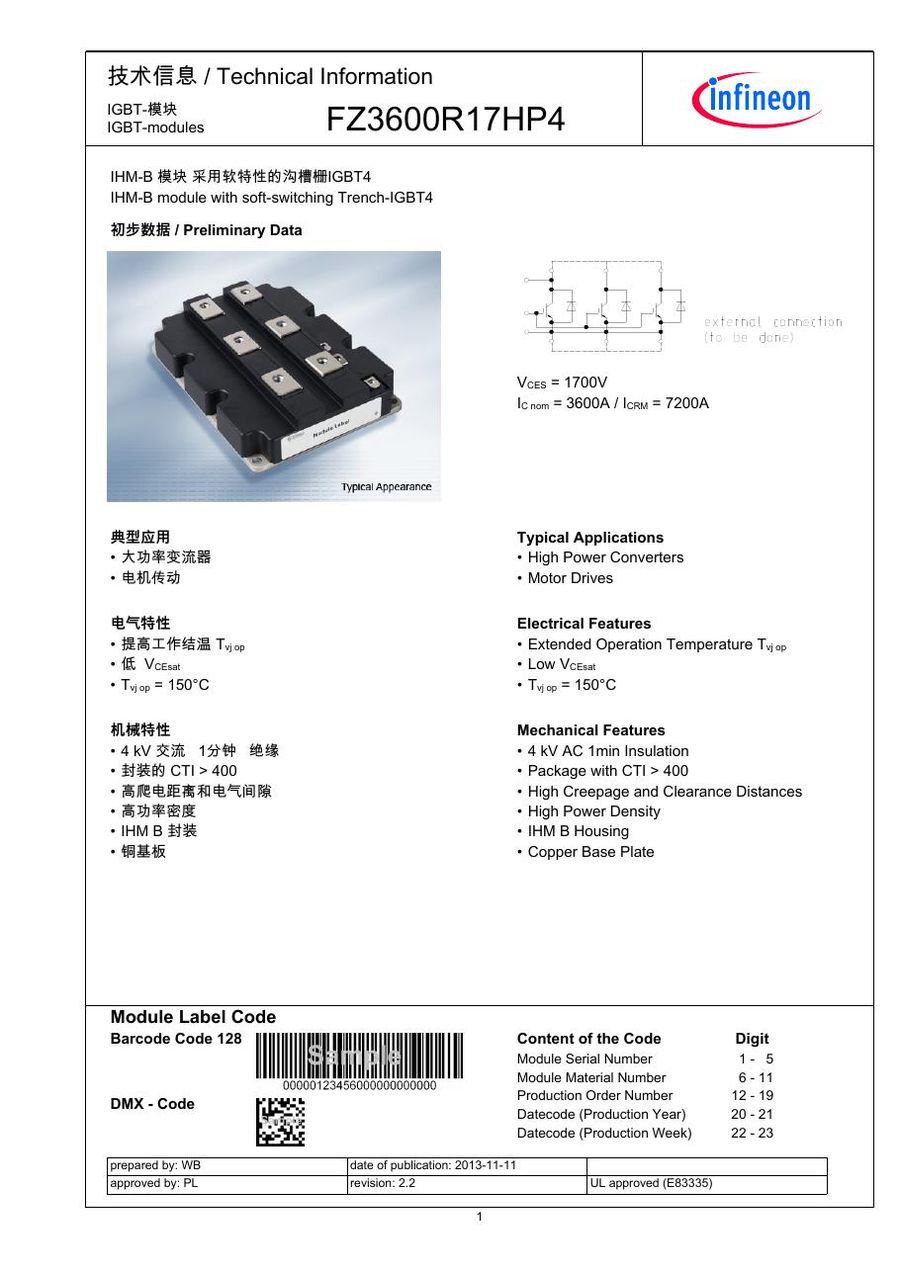

FZ3600R17HP4 PDF Datasheet
