FS225R17OE4 Infineon - IGBT Module

Not for new designs: Infineon recommended replacement: FS300R17OE4. We supply both the original FS225R17OE4 and the replacement - check the datasheets before switching.

Category: IGBT Modules

Specifications: 1700V, 225A

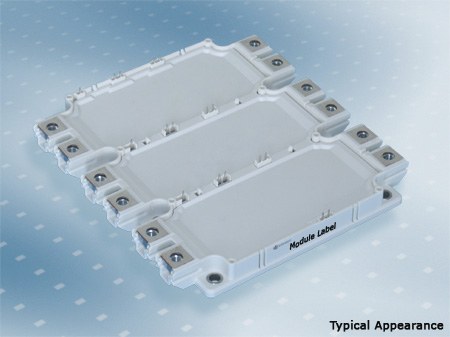

FS225R17OE4 Infineon IGBT Module

Representative image – actual product may differ

Availability and lead time are confirmed in our quote.

  • ✓ Quote within 24 hours
  • ✓ Original manufacturer parts, inspected before shipping
  • ✓ Credit cards and NET terms accepted

Or email sales@uscomponent.com or call 1-281-968-0718.

FS225R17OE4 Description

FS225R17OE4 is a 1700 V / 225 A six-pack (3-phase bridge) IGBT module from Infineon Technologies. Typical applications: auxiliary Inverters, High Power Converters, Motor Drives, Wind Turbines.

USComponent supplies FS225R17OE4 and other Infineon power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

  • High Short Circuit Capability, Self Limiting Short
  • Kurzschlussstrom Circuit Current
  • Unbeatable Robustness
  • Trench IGBT 4
  • High surge current capability
  • High mechanical robustness
  • Integrated NTC temperature sensor
  • Isolated Base Plate

Target Applications

Infineon FS225R17OE4 is used for Auxiliary Inverters, High Power Converters, Motor Drives, Wind Turbines.

Key Specifications

FS225R17OE4 is a 1700 V / 225 A six-pack (3-phase bridge) IGBT module from Infineon Technologies (EconoPACK+ package). Source: Infineon datasheet and product table.

ParameterValue
ManufacturerInfineon Technologies
Product typeIGBT module
ConfigurationSix-pack (3-phase bridge)
Collector-emitter voltage (VCES)1700 V
Nominal collector current (IC nom)225 A
PackageEconoPACK+
DatasheetAvailable on this page (PDF)

Technical document (PDF)  |  Request a quote for FS225R17OE4 (reply within 24 hours)
