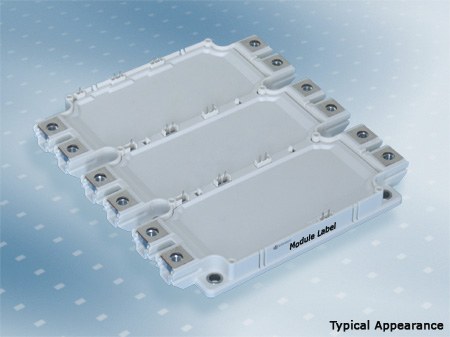

FS225R12OE4P Infineon - IGBT Module

FS225R12OE4P Description

FS225R12OE4P is a 1200 V / 225 A six-pack (3-phase bridge) IGBT module from Infineon Technologies. Typical applications: elevators, High power converters, Commercial Agriculture Vehicles, Motor drives, UPS systems.

USComponent supplies FS225R12OE4P and other Infineon power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

Target Applications

Infineon FS225R12OE4P is used for Elevators, High power converters, Commercial Agriculture Vehicles, Motor drives, UPS systems.

Key Specifications

FS225R12OE4P is a 1200 V / 225 A six-pack (3-phase bridge) IGBT module from Infineon Technologies (EconoPACK+ package). Source: Infineon datasheet and product table.

Parameter	Value
Manufacturer	Infineon Technologies
Product type	IGBT module
Configuration	Six-pack (3-phase bridge)
Collector-emitter voltage (VCES)	1200 V
Nominal collector current (IC nom)	225 A
Package	EconoPACK+
Datasheet	Available on this page (PDF)

Technical document (PDF)  |  Request a quote for FS225R12OE4P (reply within 24 hours)
