FS20R06W1E3_B11 Infineon - IGBT Module

Also written as: FS20R06W1E3-B11

Category: IGBT Modules

Specifications: 600V, 20A

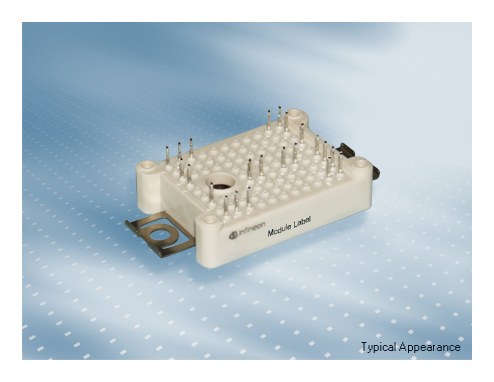

FS20R06W1E3_B11 Infineon IGBT Module

Representative image – actual product may differ

Availability and lead time are confirmed in our quote.

  • ✓ Quote within 24 hours
  • ✓ Original manufacturer parts, inspected before shipping
  • ✓ Credit cards and NET terms accepted

Or email sales@uscomponent.com or call 1-281-968-0718.

FS20R06W1E3_B11 Description

FS20R06W1E3_B11 is a 600 V / 20 A six-pack (3-phase bridge) IGBT module from Infineon Technologies. Typical applications: air Conditioning, Motor Drives, Servo Drives, UPS Systems.

USComponent supplies FS20R06W1E3_B11 and other Infineon power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

  • Low Switching Losses
  • Low Vcesat
  • Trench IGBT 3
  • VCE,sat with positive Temperature Coefficient
  • Al2O3 Substrate with Low Thermal Resistance
  • Compact design
  • PressFIT Contact Technology

Target Applications

Infineon FS20R06W1E3_B11 is used for Air Conditioning, Motor Drives, Servo Drives, UPS Systems.

Key Specifications

FS20R06W1E3_B11 is a 600 V / 20 A six-pack (3-phase bridge) IGBT module from Infineon Technologies (EasyPACK package). Source: Infineon datasheet and product table.

ParameterValue
ManufacturerInfineon Technologies
Product typeIGBT module
ConfigurationSix-pack (3-phase bridge)
Collector-emitter voltage (VCES)600 V
Nominal collector current (IC nom)20 A
PackageEasyPACK
DatasheetAvailable on this page (PDF)

Technical document (PDF)  |  Request a quote for FS20R06W1E3_B11 (reply within 24 hours)

Related Part Numbers

FS30R06W1E3_B11
600V, 30A		FS50R06W1E3_B11
600V, 50A		FS50R07W1E3_B11A
650V, 50A		FS75R07W2E3_B11A
650V, 75A
FS20R06XE3
600V, 20A		FS20R06W1E3
600V, 20A		FS20R06XL4
600V, 20A		FS20R06VL4_B2
600V, 20A
FS20R06VE3-B2
600V, 20A		FS20R06VE3
600V, 20A		FS20R06KE3
600V, 26A		FS200R12W3T7_B11
1200V, 200A
FS200R12PT4P
1200V, 200A		FS200R12PT4
1200V, 200A		FS200R12N3T7
1200V, 200A		FS200R12KT4R_B11
1200V, 200A
