FS150R17PE4 Infineon - IGBT Module

Category: IGBT Modules

Specifications: 1700V, 150A

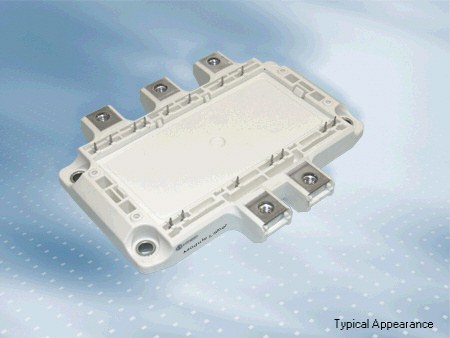

FS150R17PE4 Infineon IGBT Module

Representative image – actual product may differ

We beat competitor's price with faster delivery.

For 6 pieces or more, submit your inquiry here, email to sales@uscomponent.com or call 1-281-968-0718

FS150R17PE4 Description

FS150R17PE4 is a 1700 V / 150 A six-pack (3-phase bridge) IGBT module from Infineon Technologies. Typical applications: high Power Converters, Motor Drives, UPS Systems, Wind Turbines.

USComponent supplies FS150R17PE4 and other Infineon power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

  • Extended Operation Temperature Tvj,op
  • VcEsat with positive Temperature Coefficient
  • Low VcEsat
  • 4kV AC 1min Insulation
  • High Power Density
  • Isolated Base Plate
  • Standard Housing

Target Applications

Infineon FS150R17PE4 is used for High Power Converters, Motor Drives, UPS Systems, Wind Turbines.

Key Specifications

FS150R17PE4 is a 1700 V / 150 A six-pack (3-phase bridge) IGBT module from Infineon Technologies (EconoPACK 4 package). Source: Infineon datasheet and product table.

ParameterValue
ManufacturerInfineon Technologies
Product typeIGBT module
ConfigurationSix-pack (3-phase bridge)
Collector-emitter voltage (VCES)1700 V
Nominal collector current (IC nom)150 A
PackageEconoPACK 4
DatasheetAvailable on this page (PDF)

Technical document (PDF)  |  Request a quote for FS150R17PE4 (reply within 24 hours)
