FS150R12N2T7 Infineon - IGBT Module

Category: IGBT Modules

Specifications: 1200V, 150A

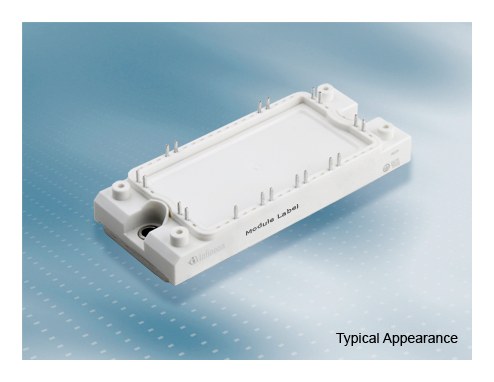

FS150R12N2T7 Infineon IGBT Module

Representative image – actual product may differ

We beat competitor's price with faster delivery.

For 6 pieces or more, submit your inquiry here, email to sales@uscomponent.com or call 1-281-968-0718

FS150R12N2T7 Description

FS150R12N2T7 is a 1200 V / 150 A six-pack (3-phase bridge) IGBT module from Infineon Technologies. Typical applications: motor drives, Auxiliary inverters, Servo drives.

USComponent supplies FS150R12N2T7 and other Infineon power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

  • Low VCEsat
  • Overload operation up to 175°C
  • TRENCHSTOP IGBT7
  • Integrated NTC temperature sensor
  • High power and thermal cycling capability
  • Solder contact technology

Target Applications

Infineon FS150R12N2T7 is used for Motor drives, Auxiliary inverters, Servo drives.

Key Specifications

FS150R12N2T7 is a 1200 V / 150 A six-pack (3-phase bridge) IGBT module from Infineon Technologies (EconoPACK 2 package). Source: Infineon datasheet and product table.

ParameterValue
ManufacturerInfineon Technologies
Product typeIGBT module
ConfigurationSix-pack (3-phase bridge)
Collector-emitter voltage (VCES)1200 V
Nominal collector current (IC nom)150 A
PackageEconoPACK 2
DatasheetAvailable on this page (PDF)

Technical document (PDF)  |  Request a quote for FS150R12N2T7 (reply within 24 hours)
