FF800R12KE7 Infineon - IGBT Module

Category: IGBT Modules

Specifications: 1200V, 800A

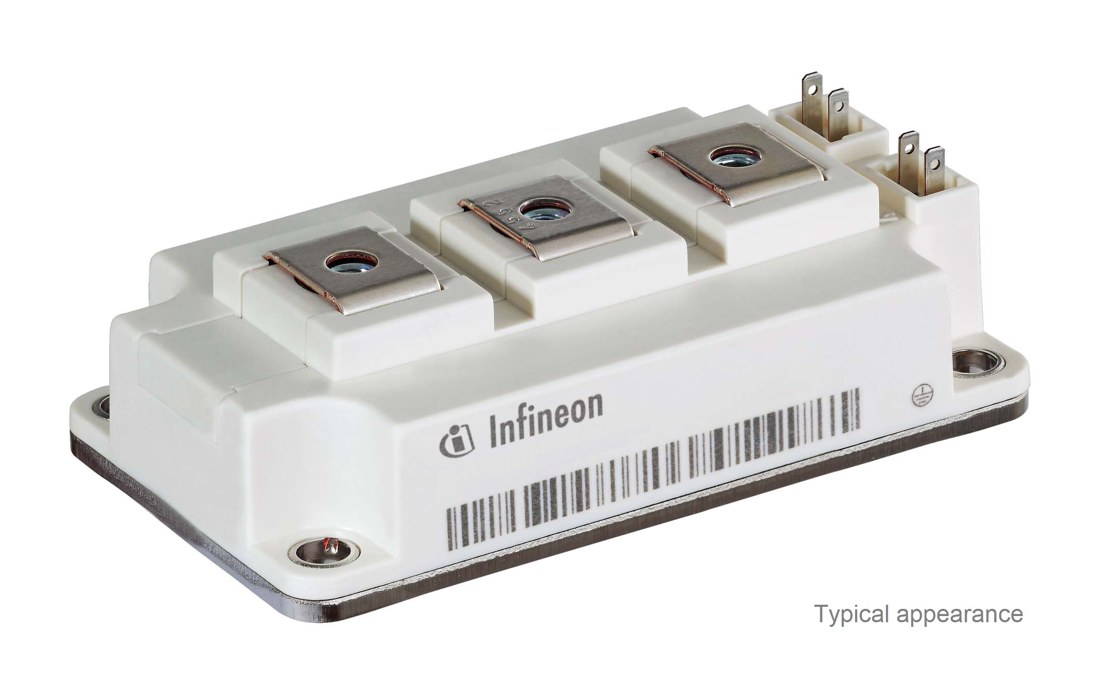

FF800R12KE7 Infineon IGBT Module

Representative image – actual product may differ

Availability and lead time are confirmed in our quote.

  • ✓ Quote within 24 hours
  • ✓ Original manufacturer parts, inspected before shipping
  • ✓ Credit cards and NET terms accepted

Or email sales@uscomponent.com or call 1-281-968-0718.

FF800R12KE7 Description

FF800R12KE7 is a 1200 V / 800 A dual (half-bridge) IGBT module from Infineon Technologies. Typical applications: three-level applications, Commercial agriculture vehicles, High-power converters, Motor drives, Servo drives, Solar applications.

USComponent supplies FF800R12KE7 and other Infineon power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

  • TRENCHSTOP IGBT7
  • VCE,sat with positive temperature coefficient
  • Standard housing
  • High creepage and clearance distances
  • High power density

Target Applications

Infineon FF800R12KE7 is used for Three-level applications, Commercial agriculture vehicles, High-power converters, Motor drives, Servo drives, Solar applications.

Key Specifications

FF800R12KE7 is a 1200 V / 800 A dual (half-bridge) IGBT module from Infineon Technologies (62mm C-series package). Source: Infineon datasheet and product table.

ParameterValue
ManufacturerInfineon Technologies
Product typeIGBT module
ConfigurationDual (half-bridge)
Collector-emitter voltage (VCES)1200 V
Nominal collector current (IC nom)800 A
Package62mm C-series
DatasheetAvailable on this page (PDF)

Technical document (PDF)  |  Request a quote for FF800R12KE7 (reply within 24 hours)
