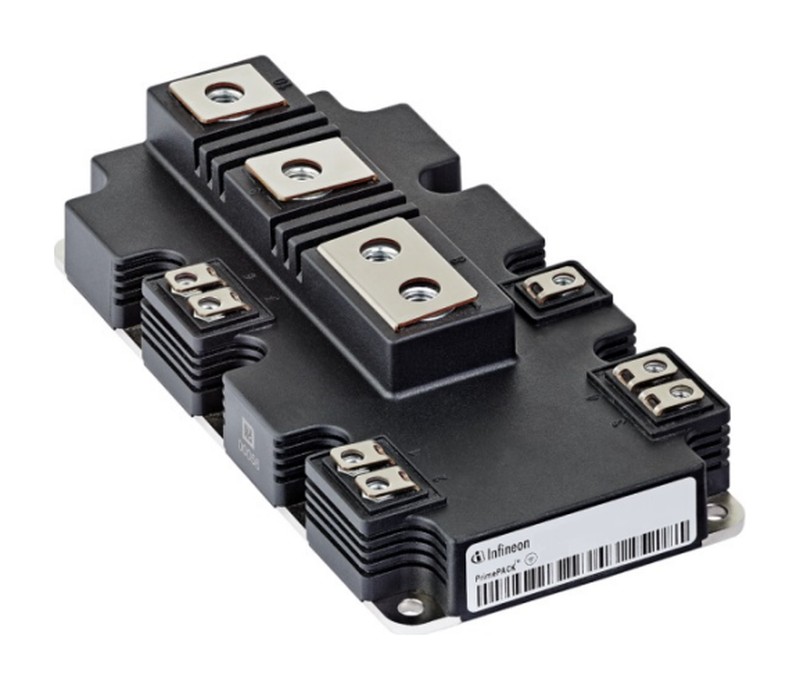

FF600R12IP4P Infineon - IGBT Module

FF600R12IP4P Description

FF600R12IP4P is a 1,200 V / 600 A PrimePACK™ 2 half-bridge IGBT module from Infineon Technologies with Trench/Fieldstop IGBT4, Emitter Controlled diode and pre-applied thermal interface material (TIM). Typical applications: 3-level applications, Motor drives, Wind turbines. Infineon has discontinued FF600R12IP4P (discontinuation notice Sep 19, 2024, last order date Mar 31, 2025). Infineon's nearest equivalent: FF600R12IP4.

USComponent supplies discontinued Infineon / eupec modules. Request a quote for FF600R12IP4P availability and price - we reply within 24 hours.

Summary of Features

Target Applications

Infineon FF600R12IP4P is used for 3-level applications, Motor drives and Wind turbines.

Key Specifications

FF600R12IP4P is a 1,200 V / 600 A PrimePACK™ 2 half-bridge IGBT module from Infineon Technologies with Trench/Fieldstop IGBT4, Emitter Controlled diode and pre-applied thermal interface material (TIM). Source: Infineon datasheet (V3.0, 2020-08-21).

Parameter	Value
Manufacturer	Infineon Technologies
Product type	IGBT module
Housing	PrimePACK™ 2
Configuration	Half-bridge (dual), integrated NTC
Technology	Trench/Fieldstop IGBT4, Emitter Controlled diode, pre-applied thermal interface material
Collector-emitter voltage (VCES)	1,200 V
Continuous DC collector current (ICDC)	600 A (TH = 100 °C, Tvj max = 175 °C)
Repetitive peak collector current (ICRM)	1,200 A
Gate-emitter peak voltage (VGES)	±20 V
VCE(sat), IC = 600 A, VGE = 15 V	1.70 V typ. / 2.05 V max. (25 °C); 2.10 V typ. / 2.55 V max. (150 °C)
Gate threshold voltage VGEth	5.00 / 5.80 / 6.50 V (min. / typ. / max.)
Gate charge (QG)	4.40 µC
Input capacitance (Cies)	37.0 nF
Turn-on / turn-off energy (Tvj = 150 °C)	Eon 83.0 mJ / Eoff 115 mJ (600 A, 600 V)
Short-circuit current (ISC)	2,400 A (tP ≤ 10 µs, Tvj = 150 °C)
Thermal resistance junction-heatsink (RthJH)	65.9 K/kW per IGBT, 104 K/kW per diode (with pre-applied TIM)
Diode forward voltage VF, IF = 600 A	1.80 V typ. / 2.20 V max. (25 °C)
Diode repetitive peak forward current (IFRM)	1,200 A
Temperature under switching conditions (Tvj op)	-40 to +150 °C
NTC rated resistance (R25)	5.00 kΩ
Isolation test voltage (VISOL)	4.0 kV (RMS, 50 Hz, 1 min)
Stray inductance (LsCE)	18 nH
Baseplate / internal isolation	Cu / Al2O3
Creepage / clearance distance	33.0 mm / 19.0 mm
Mounting torque (M5)	3.00 - 6.00 N·m
Terminal torque	M4: 1.8 - 2.1 N·m, M8: 8.0 - 10 N·m
Weight	825 g
Status (Infineon)	Discontinued, last order date Mar 31, 2025
Nearest equivalent (Infineon)	FF600R12IP4
Applications (datasheet)	3-level applications, Motor drives, Wind turbines
Datasheet	Available on this page (PDF)
