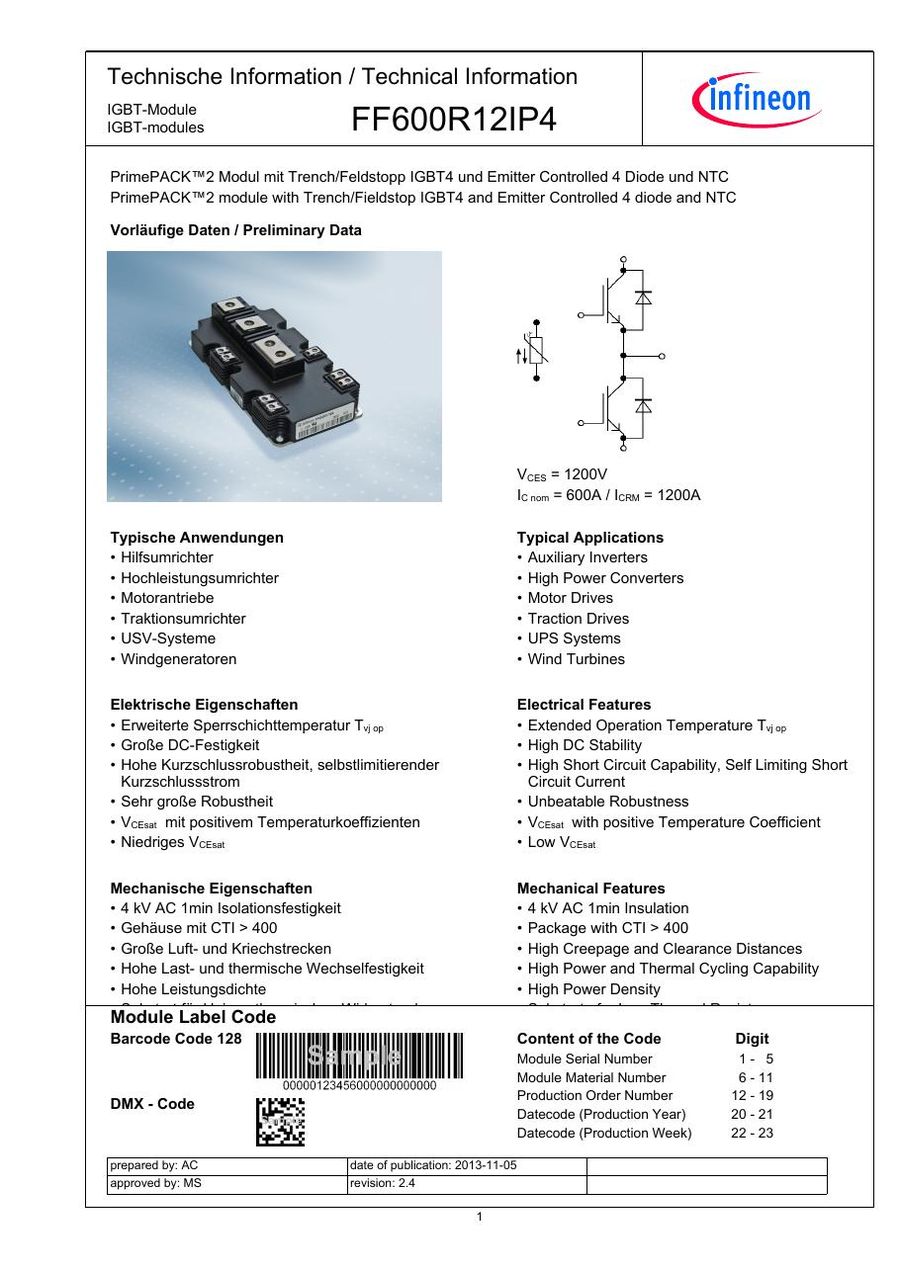

FF600R12IP4 Infineon - IGBT Module
Replacement for: Infineon recommends FF600R12IP4 as the replacement for FF600R12IP4P, FF600R12IP4V. We also supply the original parts.
FF600R12IP4 Description
The FF600R12IP4 is an IGBT module made by Infineon Technologies. Inside, it has two switches in a half-bridge (2-in-1) arrangement. Typical uses include motor drives, servo amplifiers, induction heating, welding power sources and grid-tie inverters.
Need the FF600R12IP4? USComponent stocks and sources power modules for repair shops, OEMs and maintenance teams worldwide. Request a quote and we'll confirm availability and lead time. Always compare against the datasheet before ordering.
Summary of Features
- Extended Operation Temperature Tvj op
- High DC Stability
- 4 kV AC 1min Insulation
- Package with CTI > 400
- High Creepage and Clearance Distances
- High Power and Thermal Cycling Capability
- High Power Density
- Substrate for Low Thermal Resistance
Target Applications
Infineon FF600R12IP4 is used for inverters and AC motor drives, servo drives, UPS systems, welding machines, induction heating, solar and wind power converters and other high-power switching equipment.
Key Specifications
FF600R12IP4 is a 1,200 V, 600 A IGBT module, dual (half bridge) configuration. Source: manufacturer datasheet.
| Parameter | Value |
|---|---|
| Product type | IGBT module |
| Configuration | Dual (half bridge) |
| Collector-emitter voltage (VCES) | 1,200 V |
| Collector current (IC) | 600 A |
| Datasheet | Available on this page (PDF) |
Technical document (PDF) | Request a quote for FF600R12IP4 (reply within 24 hours)
Related Part Numbers
| FF900R12IP4 1200V, 900A | FF1400R12IP4 1200V, 1400A | FF1000R17IP4 1700V, 1000A | FF1400R17IP4 1700V, 1400A |
| FF1600R12IP7 1200V, 1600A | FF2400R12IP7 1200V, 2400A | FF1200R17IP5 1700V, 1200A | FF1500R17IP5 1700V, 1500A |
| FF600R12IP4P 1200V, 600A | FF600R12IE4V 1200V, 600A | FF600R12IP4V 1200V, 600A | FF600R12IE4P 1200V, 600A |
| FF600R12IS4F 1200V, 600A | FF600R12IE4 1200V, 600A | FF600R12KE3 1200V, 600A | FF600R12BE7_B11 1200V, 600A |
