FD800R45KL3-K_B5 Infineon - IGBT Module

Also written as: FD800R45KL3-K-B5

Category: IGBT Modules

Specifications: 4500V, 800A

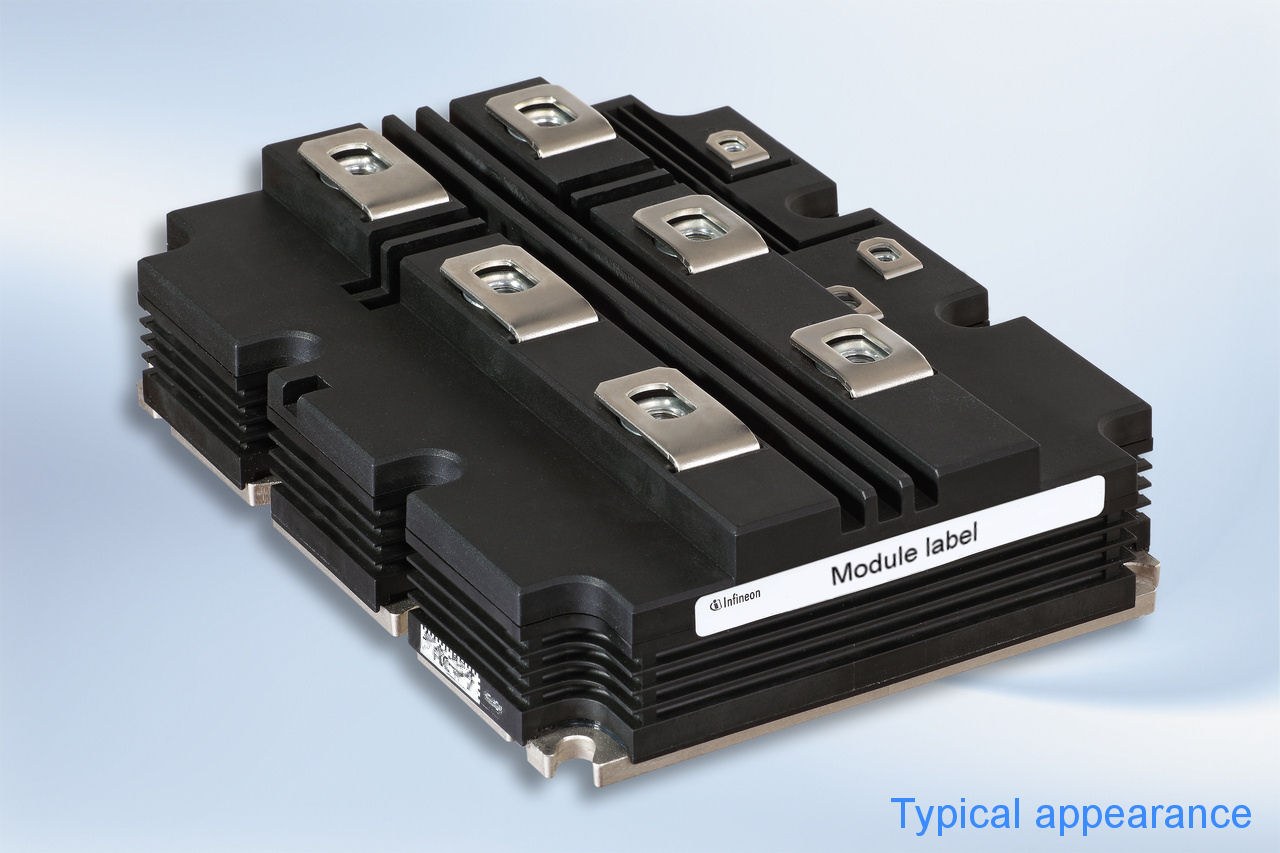

FD800R45KL3-K_B5 Infineon IGBT Module

Representative image – actual product may differ

Availability and lead time are confirmed in our quote.

  • ✓ Quote within 24 hours
  • ✓ Original manufacturer parts, inspected before shipping
  • ✓ Credit cards and NET terms accepted

Or email sales@uscomponent.com or call 1-281-968-0718.

FD800R45KL3-K_B5 Description

FD800R45KL3-K_B5 is a 4500 V / 800 A chopper (IGBT + diode) IGBT module from Infineon Technologies. Typical applications: chopper Applications, High Power Converters, Medium Voltage Converters, Motor Drives, Traction Drives.

USComponent supplies FD800R45KL3-K_B5 and other Infineon power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

  • High DC Stability
  • High Short Circuit Capability, Self Limiting Short
  • Kurzschlussstrom Circuit Current
  • High Dynamic Robustness
  • Low Vcesat
  • Trench IGBT 3
  • Vcesat with positive Temperature Coefficient
  • 10.2 kV AC Isolation

Target Applications

Infineon FD800R45KL3-K_B5 is used for Chopper Applications, High Power Converters, Medium Voltage Converters, Motor Drives, Traction Drives.

Key Specifications

FD800R45KL3-K_B5 is a 4500 V / 800 A chopper (IGBT + diode) IGBT module from Infineon Technologies. Source: Infineon datasheet and product table.

ParameterValue
ManufacturerInfineon Technologies
Product typeIGBT module
ConfigurationChopper (IGBT + diode)
Collector-emitter voltage (VCES)4500 V
Nominal collector current (IC nom)800 A
DatasheetAvailable on this page (PDF)

Technical document (PDF)  |  Request a quote for FD800R45KL3-K_B5 (reply within 24 hours)
