FD500R65KE3-K Infineon - IGBT Module

Category: IGBT Modules

Specifications: 6500V, 500A

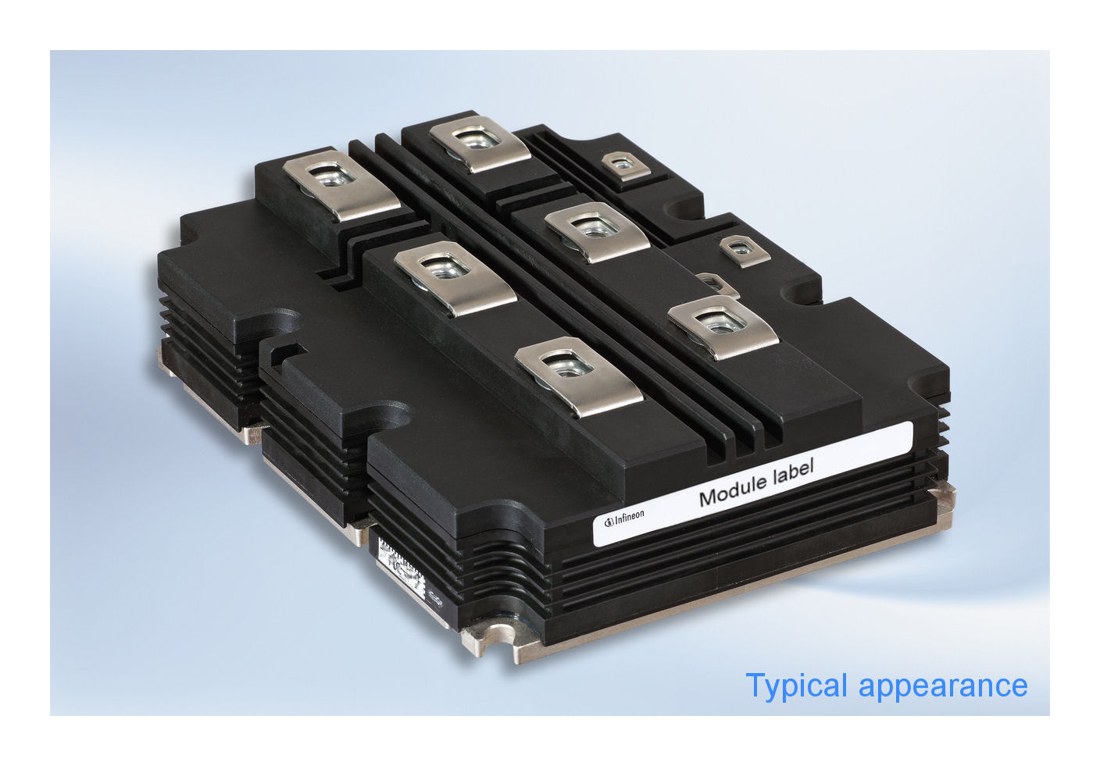

FD500R65KE3-K Infineon IGBT Module

Representative image – actual product may differ

Availability and lead time are confirmed in our quote.

  • ✓ Quote within 24 hours
  • ✓ Original manufacturer parts, inspected before shipping
  • ✓ Credit cards and NET terms accepted

Or email sales@uscomponent.com or call 1-281-968-0718.

FD500R65KE3-K Description

FD500R65KE3-K is a 6500 V / 500 A chopper (IGBT + diode) IGBT module from Infineon Technologies. Typical applications: chopper applications, Medium-voltage converters, Traction drives.

USComponent supplies FD500R65KE3-K and other Infineon power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

  • AlSiC base plate for increased thermal cycling capability
  • Extended storage temperature down to Tstg = -55 °C
  • High creepage and clearance distances
  • Package with CTI > 600
  • Package with enhanced insulation of 10.4 kV AC 60 s

Target Applications

Infineon FD500R65KE3-K is used for Chopper applications, Medium-voltage converters, Traction drives.

Key Specifications

FD500R65KE3-K is a 6500 V / 500 A chopper (IGBT + diode) IGBT module from Infineon Technologies. Source: Infineon datasheet and product table.

ParameterValue
ManufacturerInfineon Technologies
Product typeIGBT module
ConfigurationChopper (IGBT + diode)
Collector-emitter voltage (VCES)6500 V
Nominal collector current (IC nom)500 A
DatasheetAvailable on this page (PDF)

Technical document (PDF)  |  Request a quote for FD500R65KE3-K (reply within 24 hours)
