DD180N22S Infineon - Diode Module

Replacement for: Infineon recommends DD180N22S as the replacement for DD180N18S, DD180N20S. We also supply the original parts.

Category: Diode & Rectifier Modules

Specifications: 2200V, 180A

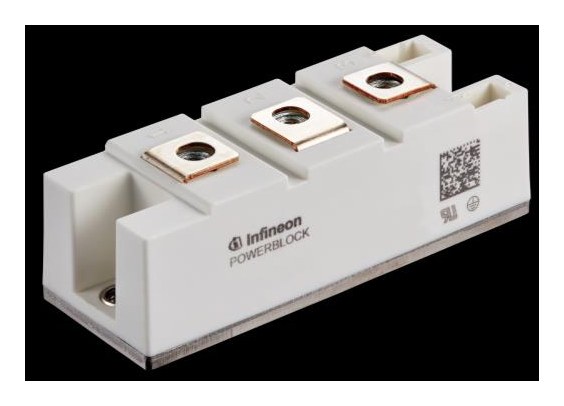

DD180N22S Infineon Diode Module

Representative image – actual product may differ

Availability and lead time are confirmed in our quote.

  • ✓ Quote within 24 hours
  • ✓ Original manufacturer parts, inspected before shipping
  • ✓ Credit cards and NET terms accepted

Or email sales@uscomponent.com or call 1-281-968-0718.

DD180N22S Description

DD180N22S is a 2200 V / 180 A dual diode diode module from Infineon Technologies. Typical applications: rectifier for drives applications, Rectifiers for UPS, Battery chargers.

USComponent supplies DD180N22S and other Infineon power modules. Request a quote for price and lead time - we reply within 24 hours.

Target Applications

Infineon DD180N22S is used for Rectifier for drives applications, Rectifiers for UPS, Battery chargers.

Key Specifications

DD180N22S is a 2200 V / 180 A dual diode diode module from Infineon Technologies (34 mm base plate module). Source: Infineon datasheet and product table.

ParameterValue
ManufacturerInfineon Technologies
Product typeDiode Module
ConfigurationDual diode
Repetitive peak reverse voltage (VRRM)2200 V
Average forward current (IFAVM)180 A
Package34 mm base plate module
DatasheetAvailable on this page (PDF)

Technical document (PDF)  |  Request a quote for DD180N22S (reply within 24 hours)
