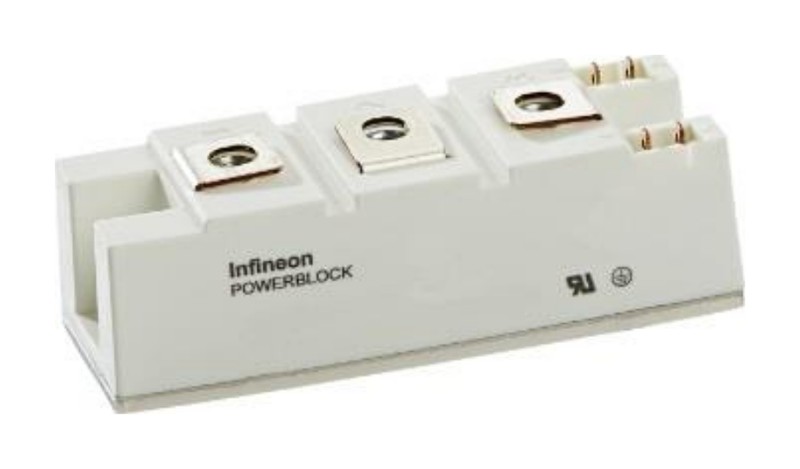

DD170N16S Infineon - Diode Module
Discontinued: Infineon recommended replacement: DD180N16S. We supply both the original DD170N16S and the replacement - check the datasheets before switching.
DD170N16S Description
DD170N16S is a 1,600 V dual rectifier diode module (PowerBLOCK, 34 mm baseplate) from Infineon Technologies (eupec) with solder-bond technology. Typical applications: Rectifiers for drives applications, Rectifiers for UPS, Battery chargers. Infineon has discontinued DD170N16S (discontinuation notice Jan 12, 2024, last order date Jul 15, 2024). Infineon's nearest equivalent: DD180N16S.
USComponent supplies discontinued Infineon / eupec modules. Request a quote for DD170N16S availability and price - we reply within 24 hours.
Summary of Features
DD170N16S is a 1,600 V dual rectifier diode module (PowerBLOCK, 34 mm baseplate) from Infineon Technologies (eupec) with solder-bond technology.
- VRRM 1600 V, IFAVM 165 A (TC = 100 °C)
- IFSM 6600 A
- Solder-bond technology
- Industrial standard package
- Electrically insulated base plate
Target Applications
Infineon DD170N16S is used for Rectifiers for drives applications, Rectifiers for UPS and Battery chargers.
Key Specifications
DD170N16S is a 1,600 V dual rectifier diode module (PowerBLOCK, 34 mm baseplate) from Infineon Technologies (eupec) with solder-bond technology. Source: Infineon datasheet (Revision 3.3, 2021-10-29).
| Parameter | Value |
|---|---|
| Manufacturer | Infineon Technologies (eupec) |
| Product type | Rectifier diode module |
| Housing | PowerBLOCK, 34 mm baseplate, electrically insulated |
| Configuration | Dual diode (two diodes in series) |
| Technology | Solder-bond technology |
| Repetitive peak reverse voltage (VRRM) | 1,600 V |
| Non-repetitive peak reverse voltage (VRSM) | 1,700 V |
| Average forward current (IFAVM) | 165 A (TC = 100 °C) |
| RMS forward current (IFRMSM) | 260 A |
| Surge current (IFSM, 10 ms) | 6,600 A (Tvj = 25 °C); 5,500 A (Tvj max) |
| I²t value (10 ms) | 217,800 A²s (25 °C); 151,250 A²s (Tvj max) |
| Forward voltage (vF) | 1.4 V max. (iF = 500 A, Tvj = 25 °C) |
| Threshold voltage V(TO) / slope resistance rT | 0.75 V / 1.05 mΩ (max.) |
| Reverse current (iR) | 9 mA max. (Tvj max, VRRM) |
| Thermal resistance junction-case (RthJC) | 0.09 K/W per module, 0.18 K/W per arm |
| Thermal resistance case-heatsink (RthCH) | 0.05 K/W per module |
| Max. junction temperature (Tvj max) | 135 °C |
| Operating / storage temperature | -40 to +125 °C |
| Isolation test voltage (VISOL) | 3 kV (RMS, 1 min); 3.6 kV (1 s) |
| Internal isolation | Al2O3 |
| Mounting torque (M1) | 5 N·m |
| Terminal torque (M2) | 5 N·m |
| Weight | 165 g typ. |
| Status (Infineon) | Discontinued, last order date Jul 15, 2024 |
| Nearest equivalent (Infineon) | DD180N16S |
| Applications (datasheet) | Rectifiers for drives applications, Rectifiers for UPS, Battery chargers |
| Datasheet | Available on this page (PDF) |
