DD151N16 Infineon - BRIDGE RECTIFIER

Category: Diode & Rectifier Modules

Specifications: 1600V, 151A

DD151N16, Eupec, Eupec Infineon power module

Representative image – actual product may differ

Availability and lead time are confirmed in our quote.

  • ✓ Quote within 24 hours
  • ✓ Original manufacturer parts, inspected before shipping
  • ✓ Credit cards and NET terms accepted

Or email sales@uscomponent.com or call 1-281-968-0718.

DD151N16 Description

Infineon Technologies (formerly Eupec) makes the DD151N16, a 1600 V, 151 A rectifier bridge. Typical applications include AC-to-DC rectification in drives and power supplies, freewheeling paths and battery charging.

USComponent has sourced power semiconductors for maintenance teams and OEMs since 2001. For price and availability of the DD151N16, send us a request for quote. Please confirm the specifications against the manufacturer's datasheet before purchase.

Target Applications

Infineon DD151N16 is used for AC/DC power conversion and control: controlled and uncontrolled rectifiers, DC motor drives, soft starters, battery chargers, welding equipment, heater and temperature control, and AC power controllers.

Key Specifications

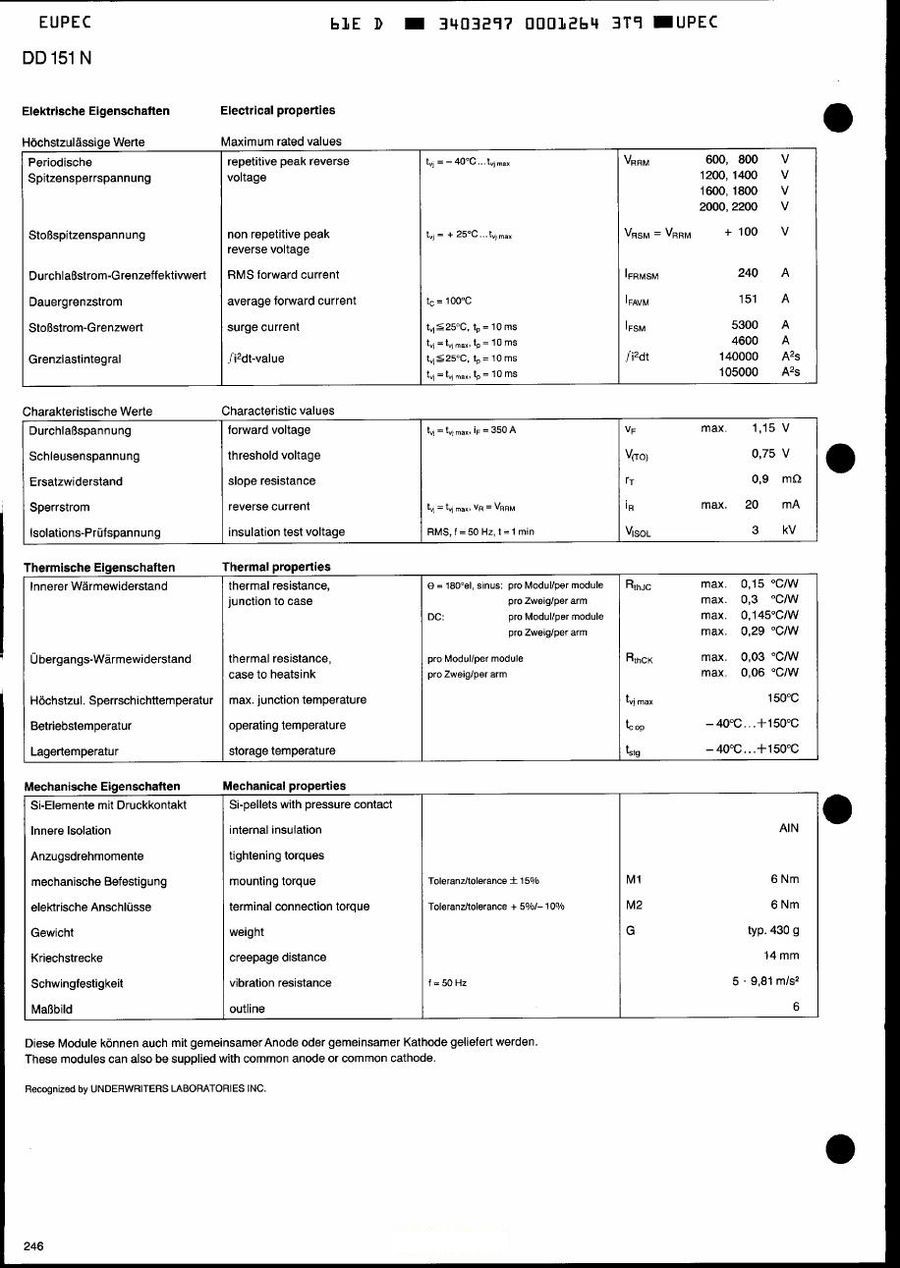

DD151N16 is an eupec (Infineon) PowerBLOCK diode module. Source: eupec Power Semiconductors Shortform Catalog 2003 (catalog page available on this page as PDF).

ParameterValue
Manufacturereupec (Infineon Technologies)
Product typePowerBLOCK diode module
Repetitive peak reverse voltage (VRRM)1600 V (series 1200 to 2000 V)
Average forward current (IFAVM), 180° el sin151 A at Tc = 100 °C
RMS current (IFRMSM)240 A
Surge current (IFSM), 10 ms, Tvj max4600 A
I²t, 10 ms, Tvj max105.8 × 10³ A²s
Threshold voltage V(T0)0.75 V
Slope resistance rT0.9 mΩ
Thermal resistance RthJC0.3 °C/W
Thermal resistance RthCK0.06 °C/W
Max. junction temperature Tvj max150 °C
Package (outline)DP30

Technical document (PDF)  |  Request a quote for DD151N16 (reply within 24 hours)
