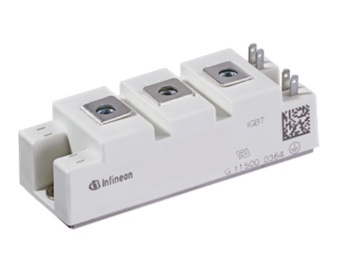

BSM50GB60DLCInfineon - IGBT

BSM50GB60DLC Description

The Infineon Technologies BSM50GB60DLC is an IGBT module rated at 600 V and 75 A. Components of this type are commonly used in variable-frequency motor drives, servo drives, UPS systems, welding machines, induction heating and solar or wind inverters.

USComponent specializes in sourcing power modules and industrial electronic components, including legacy and hard-to-find parts for repair and maintenance. Please confirm ratings, package and pin-out against the manufacturer's datasheet before ordering, and request a quote for current pricing and lead time on the BSM50GB60DLC.

Target Applications

Infineon BSM50GB60DLC is used for inverters and AC motor drives, servo drives, UPS systems, welding machines, induction heating, solar and wind power converters and other high-power switching equipment.

Key Specifications

Manufacturer	Infineon Technologies (eupec)
Configuration	Half-bridge IGBT module
Technology	Low-loss IGBT2 (DLC)
VCES	600 V
IC	50 A (TC = 80 °C) / 75 A (TC = 25 °C)
ICRM	100 A (tp = 1 ms)
Isolation test voltage	2.5 kV RMS, 50 Hz, 1 min
Mounting torque	M6: 5 Nm
Weight	180 g
