FF300R07KE4 Infineon - IGBT Module

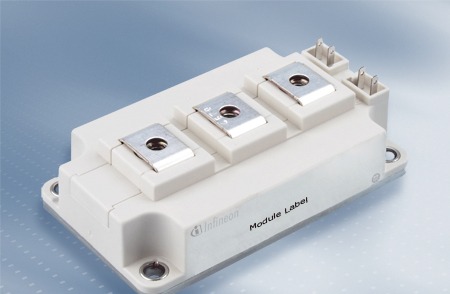

FF300R07KE4 Description

FF300R07KE4 is a 650 V, 300 A Infineon 62 mm IGBT module (half bridge) with Trench/Fieldstop IGBT4, used in high-power converters, motor drives and UPS systems. Infineon recommends it as the replacement for the discontinued BSM50/75/100/150/200/300GB60DLC.

USComponent supplies FF300R07KE4 and other Infineon power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

Target Applications

Infineon FF300R07KE4 is used for high power converters, motor drives and UPS systems.

Key Specifications

FF300R07KE4 is a 650 V, 300 A Infineon IGBT module (dual / half bridge) in the 62 mm C-series housing. Source: manufacturer datasheet.

Parameter	Value
Product type	IGBT module
Configuration	Dual (half bridge)
Collector-emitter voltage (VCES)	650 V
Collector current (IC nom, TC 70 °C)	300 A
Collector current (IC, TC 25 °C)	365 A
Repetitive peak collector current (ICRM)	600 A
Total power dissipation (Ptot)	940 W
Technology	Trench/Fieldstop IGBT4, Emitter Controlled diode
Operating junction temperature (Tvj op)	-40 to 150 °C
Isolation	2.5 kV AC 1 min
Package	62 mm C-series
Datasheet	Available on this page (PDF)

Replacement for discontinued parts: Infineon recommends FF300R07KE4 as the replacement for BSM50GB60DLC, BSM75GB60DLC, BSM100GB60DLC, BSM150GB60DLC, BSM200GB60DLC, BSM300GB60DLC and BSM300GB60DLC_E3256 (Product Discontinuation PD_245_19, 600 V IGBT2 34 mm / 62 mm modules). Check the datasheet limits, package and gate drive conditions when replacing: the 34 mm BSM types have a different housing.

Technical document (PDF)  |  Request a quote for FF300R07KE4 (reply within 24 hours)
