BSM35GD120DN2 Infineon - IGBT Module

Category: IGBT Modules

Specifications: 1200V, 50A

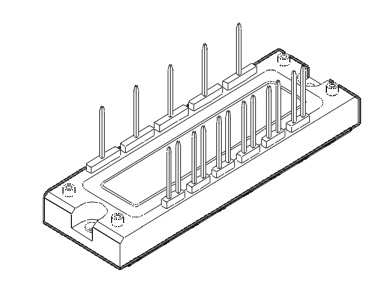

BSM35GD120DN2, INFINEON, IGBT Power Module

We beat competitor's price with faster delivery.

For 6 pieces or more, submit your inquiry here, email to sales@uscomponent.com or call 1-281-968-0718

BSM35GD120DN2 Description

The BSM35GD120DN2 from Infineon Technologies is an IGBT module with a 1200 V rating. It is a common choice for inverter stages in AC drives, servo systems, welders and uninterruptible power supplies.

Request a quote for the BSM35GD120DN2 and our team will get back to you with price, quantity available and lead time. We ship worldwide. As with any power device, please check the manufacturer's datasheet to confirm it matches your design.

Summary of Features

  • Power module
  • 3-phase full-bridge
  • Including fast free-wheel diodes
  • Package with insulated metal base plate

Target Applications

Infineon BSM35GD120DN2 is used for Drive, Solar, CAV and UPS.

Key Specifications

ManufacturerInfineon Technologies (Siemens / eupec)
ConfigurationThree-phase full bridge (six-pack) IGBT module with fast free-wheel diodes
PackageEconoPACK 2, insulated metal base plate
VCES1200 V
IC50 A (TC = 25 °C) / 35 A (TC = 80 °C)

BSM35GD120DN2 Video

BSM35GD120DN2 video

Technical document (PDF)  |  Request a quote for BSM35GD120DN2 (reply within 24 hours)
