BSM200GB170DLC Infineon - IGBT

BSM200GB170DLC Description

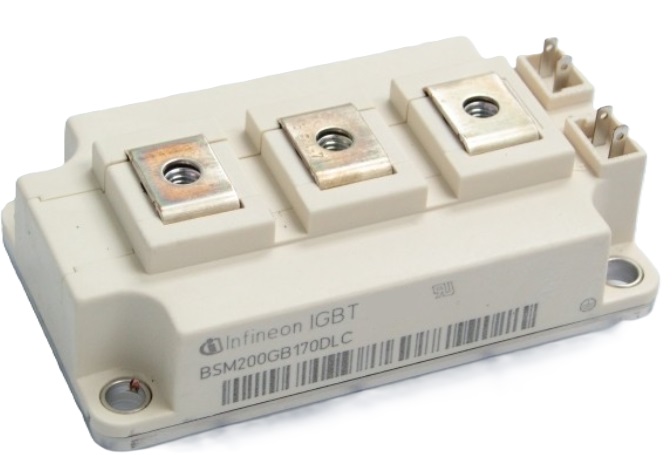

Infineon Technologies makes the BSM200GB170DLC, an IGBT module. It is a common choice for inverter stages in AC drives, servo systems, welders and uninterruptible power supplies.

USComponent has been supplying power semiconductors since 2001, including discontinued and hard-to-find part numbers. Send us an RFQ for the BSM200GB170DLC and we will reply with price, condition and lead time. Please check the manufacturer's datasheet to confirm ratings, package and pin-out before you order.

Target Applications

Infineon BSM200GB170DLC is used for inverters and AC motor drives, servo drives, UPS systems, welding machines, induction heating, solar and wind power converters and other high-power switching equipment.

Key Specifications

Manufacturer	Infineon Technologies (eupec)
Configuration	Half-bridge IGBT module
Technology	Low-loss IGBT2 (DLC)
VCES	1700 V
IC	400 A (TC = 25 °C)
Diode IFRM	400 A (tp = 1 ms)
Isolation test voltage	3.4 kV RMS, 50 Hz, 1 min
Mounting torque	5 Nm max.
Terminal torque	M6: 5 Nm max.
Weight	420 g

BSM200GB170DLC Video

Technical document (PDF)  |  Request a quote for BSM200GB170DLC (reply within 24 hours)
