BSM200GA120DN2_S7 Infineon - IGBT Module

BSM200GA120DN2_S7 Description

The BSM200GA120DN2_S7 from Infineon Technologies is an IGBT module with a 1200 V / 200 A rating. The module contains a single switch with its freewheeling diode (1-in-1). Typical uses include motor drives, servo amplifiers, induction heating, welding power sources and grid-tie inverters.

Looking for a replacement BSM200GA120DN2_S7? USComponent can quote new and hard-to-find stock and ships worldwide. Request a quote for pricing and lead time, and double-check the datasheet to make sure it fits your application.

Summary of Features

BSM200GA120DN2_S7 is a 1200V 200A IGBT Module.

Target Applications

Infineon BSM200GA120DN2_S7 is used for Drives, Wind, Traction, CAV and UPS.

Key Specifications

Manufacturer	Infineon Technologies (Siemens / eupec)
Configuration	Single switch IGBT module with fast free-wheeling diode
Package	Single switch 1, insulated metal base plate
VCES	1200 V
IC	300 A (TC = 25 °C) / 200 A (TC = 80 °C)
IC pulse	600 A / 400 A (tp = 1 ms)

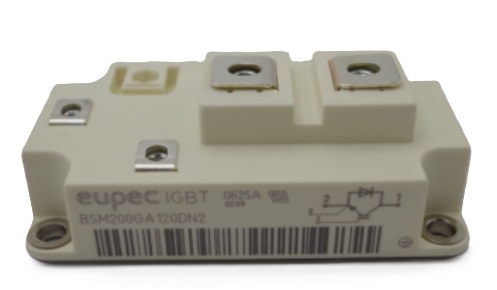

Note: BSM200GA120DN2_S7 is an Infineon variant of BSM200GA120DN2 (same module, special version / test grouping; please ask us for the differences). The datasheet and picture on this page are those of BSM200GA120DN2.

Status: discontinued by Infineon (Product Discontinuation PD_079_23, last order date 2023-09-30). Infineon recommended replacement: FZ400R12KE4. Infineon notes that a replacement is not always a one-to-one drop-in: check the datasheet limits and gate drive conditions. USComponent can still source the original BSM200GA120DN2_S7.
