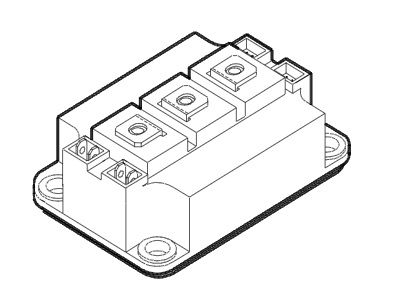

BSM100GB170DN2 Infineon - IGBT Module

BSM100GB170DN2 Description

The BSM100GB170DN2 is an IGBT module made by Infineon Technologies. It is built with two switches in a half-bridge (2-in-1) arrangement. Engineers use it mainly in the inverter section of motor drives, as well as in UPS, welding and power-conversion equipment.

Need the BSM100GB170DN2? USComponent stocks and sources power modules for repair shops, OEMs and maintenance teams worldwide. Request a quote and we'll confirm availability and lead time. Always compare against the datasheet before ordering.

Target Applications

Infineon BSM100GB170DN2 is used for motor drives and inverters, servo amplifiers, UPS systems, welding machines and other industrial power switching equipment.

Key Specifications

Manufacturer	Infineon Technologies (Siemens / eupec)
Configuration	Half-bridge IGBT module with fast free-wheeling diodes
Package	Half-bridge 2, insulated metal base plate
VCES	1700 V
IC	145 A (TC = 25 °C) / 100 A (TC = 80 °C)

BSM100GB170DN2 Video
