EV1277 Fuji Electric - IGBT power module

EV1277 Description

Fuji Electric makes the EV1277, a 1000 V, 30 A IGBT module. It is a common choice for inverter stages in AC drives, servo systems, welders and uninterruptible power supplies. If you are repairing older equipment, we can usually find this exact part, including date codes that are no longer in production.

Looking for a replacement EV1277? USComponent can quote new and hard-to-find stock and ships worldwide. Request a quote for pricing and lead time, and double-check the datasheet to make sure it fits your application.

Summary of Features

Target Applications

Fuji Electric EV1277 is used for High Power Switching Uninterruptible Power Supply DC Motor Controls Welding Machines.

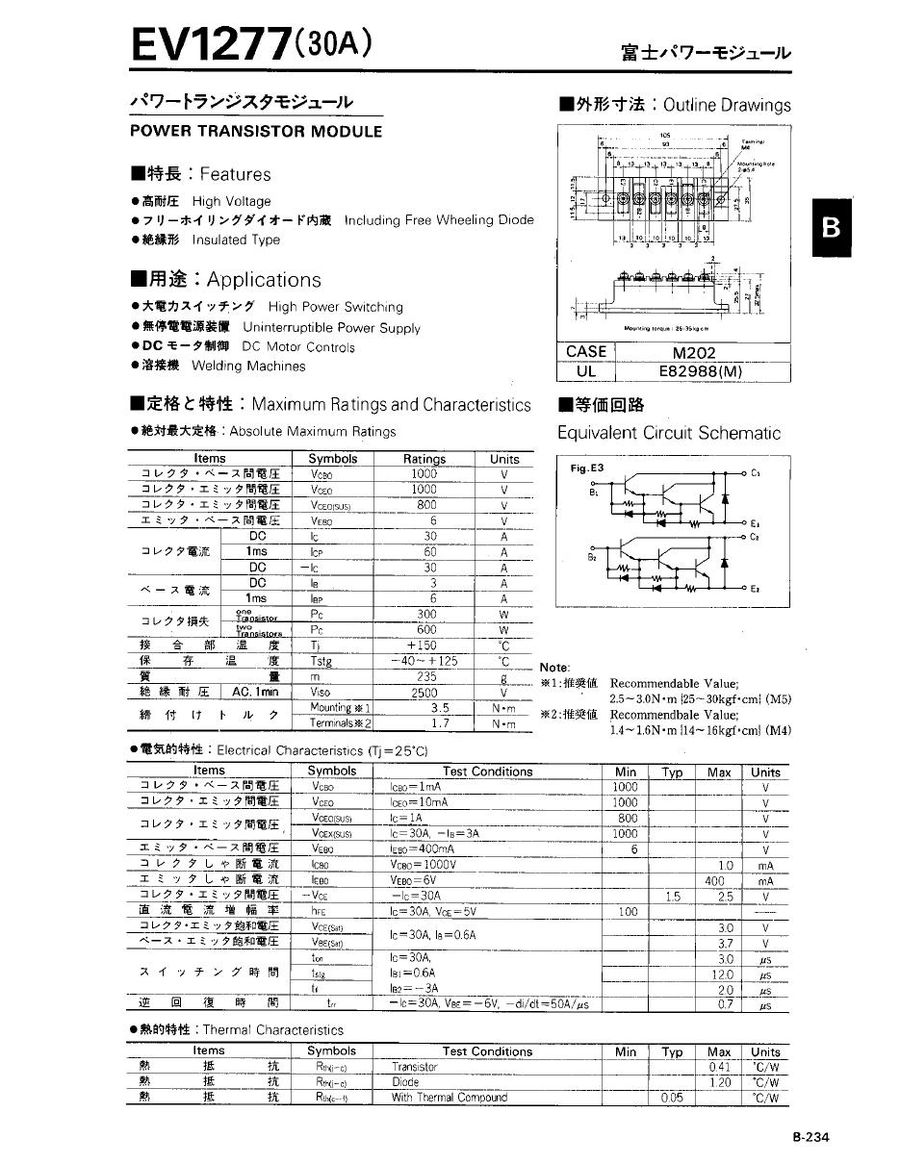

Key Specifications

Manufacturer	Fuji Electric
Configuration	Dual power transistor (Darlington) module with free-wheeling diodes, insulated type
Package	Case M202, UL E82988
VCBO / VCEO	1000 V / 1000 V
VCEO(sus)	800 V
IC	30 A (DC)
ICP	60 A (1 ms)
hFE min.	100 @ 30 A, VCE = 5 V
VCE(sat) max.	3.0 V @ 30 A
Collector power dissipation	300 W (one transistor)
Isolation voltage	AC 2500 V (1 min)
Screw torque	Mounting 3.5 N·m; terminals 1.7 N·m (max.)
Weight	235 g

EV1277 Video

Technical document (PDF)  |  Request a quote for EV1277 (reply within 24 hours)
