7MBR50SD120 Fuji Electric - IGBT MODULE

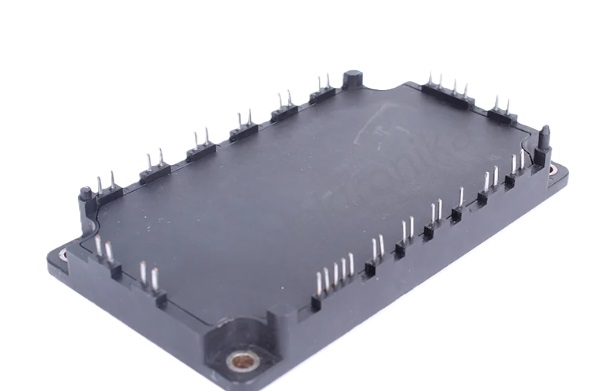

7MBR50SD120 Description

The Fuji Electric 7MBR50SD120 is an IGBT module, rated for 1200 V and 50 A. Modules like this do the heavy switching in motor drives, UPS systems, induction heaters and renewable-energy inverters.

USComponent is a BBB A+ accredited distributor that specializes in power modules and industrial components, new and legacy. Ask us for a quote on the 7MBR50SD120; we ship worldwide. Please verify the ratings and package against the manufacturer's datasheet first.

Summary of Features

Target Applications

Fuji Electric 7MBR50SD120 is used for Inverters for motor drives, AC and DC servo drive amplifiers and Uninterruptible power supply.

Key Specifications

Manufacturer	Fuji Electric
Configuration	PIM, S-Series, with built-in converter thyristor: three-phase inverter + converter + dynamic brake
Inverter VCES / IC	1200 V / 75 A (TC = 25 °C), 50 A (TC = 80 °C)
Inverter ICP	150 A (1 ms)
Brake collector power dissipation	180 W
Terminal torque	M5: 2.5 - 3.5 N·m
Mounting torque	M5: 2.5 - 3.5 N·m
