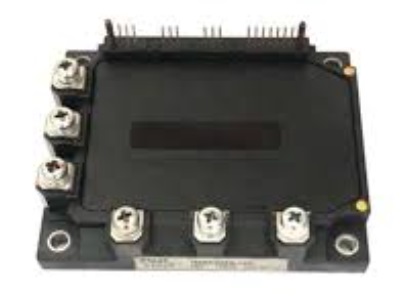

7MBP50RE-120 Fuji Electric - IGBT power module

7MBP50RE-120 Description

The 7MBP50RE-120 from Fuji Electric is an intelligent power module (IPM) with a 1200 V / 50 A rating. The module contains a PIM layout, with the input rectifier, brake chopper and three-phase inverter in one package. Because the gate drivers and protection circuits are built in, it is popular in compact motor drives, servo amplifiers and appliance inverters.

Need the 7MBP50RE-120? USComponent stocks and sources power modules for repair shops, OEMs and maintenance teams worldwide. Request a quote and we'll confirm availability and lead time. Always compare against the datasheet before ordering.

Summary of Features

Target Applications

Fuji Electric 7MBP50RE-120 is used for Pre-drivers include following functions 1.Amplifier for driver 2.Short circuit protection 3.Under voltage lockout circuit 4.Over current protection 5.IGBT chip over heating protection.

Key Specifications

Manufacturer	Fuji Electric
Configuration	IPM, six-pack + brake (7-in-1)
VCES	1200 V
IC nom	50 A
Similar-rating parts	PM50RSA120, PM50RSD120, PM50RLA120, PM50RSE120, 7MBP50RA120 (same nominal voltage and current rating, for reference only. Package, pinout and characteristics may differ; please compare datasheets to determine suitability)
