6MBP20XRVF065-50 Fuji Electric - Intelligent Power Module

Category: Intelligent Power Modules (IPM)

Specifications: 650V, 20A

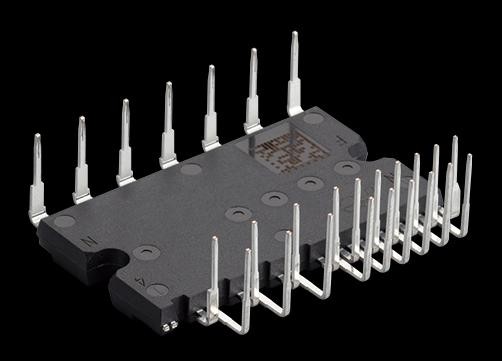

6MBP20XRVF065-50 Fuji Electric Intelligent Power Module

Representative image – actual product may differ

Availability and lead time are confirmed in our quote.

  • ✓ Quote within 24 hours
  • ✓ Original manufacturer parts, inspected before shipping
  • ✓ Credit cards and NET terms accepted

Or email sales@uscomponent.com or call 1-281-968-0718.

6MBP20XRVF065-50 Description

6MBP20XRVF065-50 is a 650 V / 20 A intelligent power module (IPM) from Fuji Electric, X series (7th-Generation). Typical applications: AC 100 ~ 240V (DC voltage 400V or below) three phase small power motor inverter drive.

USComponent supplies 6MBP20XRVF065-50 and other Fuji Electric IGBT modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

  • Low-side RC-IGBTs are separate emitter type
  • Short circuit protection
  • Temperature sensor output function
  • Overheating protection
  • Under voltage protection
  • Fault signal output function
  • Input interface: TTL(3.3V/5V) Active high logic

Target Applications

Fuji Electric 6MBP20XRVF065-50 is used for AC 100 ~ 240V (DC voltage 400V or below) three phase small power motor inverter drive.

Key Specifications

6MBP20XRVF065-50 is a 650 V / 20 A intelligent power module (IPM) from Fuji Electric, X series (7th-Generation). Source: Fuji Electric datasheet and product data.

ParameterValue
ManufacturerFuji Electric
Product typeIntelligent power module (IPM)
SeriesX series (7th-Generation)
Collector-emitter voltage (VCES)650 V
Collector current (IC)20 A
PackageP641 (Small IPM)
Size18.8 x 32.8 mm
Net mass5.6 g
Supply status (Fuji)Available
DatasheetAvailable on this page (PDF)

Technical document (PDF)  |  Request a quote for 6MBP20XRVF065-50 (reply within 24 hours)
