6MBP100RS060Fuji Electric - IGBT Module

6MBP100RS060 Description

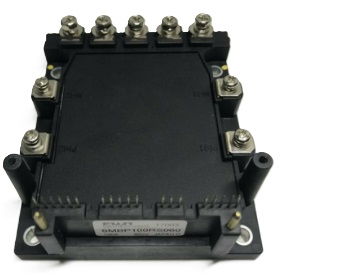

The Fuji Electric 6MBP100RS060 is an intelligent power module (IPM) rated at 600 V and 100 A, available from USComponent. Components of this type are commonly used in compact motor drives, servo amplifiers and inverter-based equipment, where the IPM combines power switches with built-in gate drive and protection circuitry.

USComponent supplies power semiconductors and industrial electronic components to engineers, OEMs and maintenance teams worldwide, including legacy and hard-to-find part numbers. Please confirm ratings, package and pin-out against the manufacturer's datasheet before ordering, and request a quote for current pricing and lead time on the 6MBP100RS060.

Summary of Features

6MBP100RS060 is a 600V 100A IGBT Module.

Target Applications

Fuji Electric 6MBP100RS060 is used for General purpose inverter, AC and DC Servo drive amplifier and Uninterruptible power supply.

Key Specifications

Manufacturer	Fuji Electric
Configuration	IPM, six-pack (6-in-1)
VCES	600 V
IC nom	100 A
Similar-rating parts	PM100CSD060, PM100CFE060, PM100CLA060, 6MBP100RA-060, 6MBP100JA060, 6MBP100RD060-01, 6MBP100RH060, 6MBP100NA060, 6MBP100KB060, 6MBP100KC060 (same nominal voltage and current rating, for reference only. Package, pinout and characteristics may differ; please compare datasheets to determine suitability)

6MBP100RS060 Video

Download 6MBP100RS060 Datasheet

6MBP100RS060 PDF Datasheet
