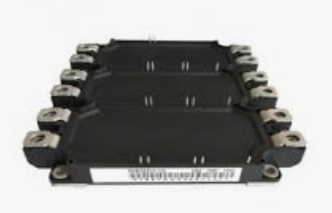

6MBI300U4-120 Fuji Electric - IGBT Module

6MBI300U4-120 Description

The 6MBI300U4-120 from Fuji Electric is an IGBT module with a 1200 V rating. Inside, it has six switches arranged as a three-phase bridge (6-in-1). Engineers use it mainly in the inverter section of motor drives, as well as in UPS, welding and power-conversion equipment.

Need the 6MBI300U4-120? USComponent stocks and sources power modules for repair shops, OEMs and maintenance teams worldwide. Request a quote and we'll confirm availability and lead time. Always compare against the datasheet before ordering.

Summary of Features

Target Applications

Fuji Electric 6MBI300U4-120 is used for inverters for motor drives, AC and DC servo drive amplifiers, uninterruptible power supplies (UPS) and industrial machines such as welding machines.

Key Specifications

Fuji Electric 6MBI300U4-120 is a 1,200 V, 300 A IGBT module, U4 series, six-pack (6 in one package). Source: Fuji Electric specification MS5F 6022. Values at 25 °C unless noted.

Parameter	Value
Product type	IGBT module, U4 series
Configuration	Six-pack (6 in one package, three-phase bridge) with thermistor
Collector-emitter voltage (VCES)	1,200 V
Gate-emitter voltage (VGES)	±20 V
Collector current (IC, continuous)	450 A (Tc = 25 °C), 300 A (Tc = 80 °C)
Pulse collector current (ICP, 1 ms)	900 A (Tc = 25 °C), 600 A (Tc = 80 °C)
Collector power dissipation (PC, 1 device)	1,385 W
VCE(sat) at terminals, VGE = 15 V, Tj = 25 °C	2.30 V typ, 2.45 V max
Input capacitance (Cies)	34 nF
Junction temperature (Tj max)	150 °C
Isolation voltage (Viso, AC 1 min)	2,500 V AC
Mounting	M5 mounting / M6 main terminals
Datasheet	Available on this page (PDF)
