6MBI20GS-060 Fuji Electric - IGBT power module

6MBI20GS-060 Description

Rated at 600 V and 20 A, the Fuji Electric 6MBI20GS-060 is an IGBT module. Inside, it has six switches arranged as a three-phase bridge (6-in-1). Engineers use it mainly in the inverter section of motor drives, as well as in UPS, welding and power-conversion equipment.

USComponent has sourced power semiconductors for maintenance teams and OEMs since 2001. For price and availability of the 6MBI20GS-060, send us a request for quote. Please confirm the specifications against the manufacturer's datasheet before purchase.

Summary of Features

Target Applications

Fuji Electric 6MBI20GS-060 is used for inverters and AC motor drives, servo drives, UPS systems, welding machines, induction heating, solar and wind power converters and other high-power switching equipment.

Key Specifications

6MBI20GS-060 is a 600 V, 20 A IGBT module, six-pack (6-in-1) configuration. Source: manufacturer datasheet.

Parameter	Value
Product type	IGBT module
Configuration	Six-pack (6-in-1)
Collector-emitter voltage (VCES)	600 V
Collector current (IC)	20 A

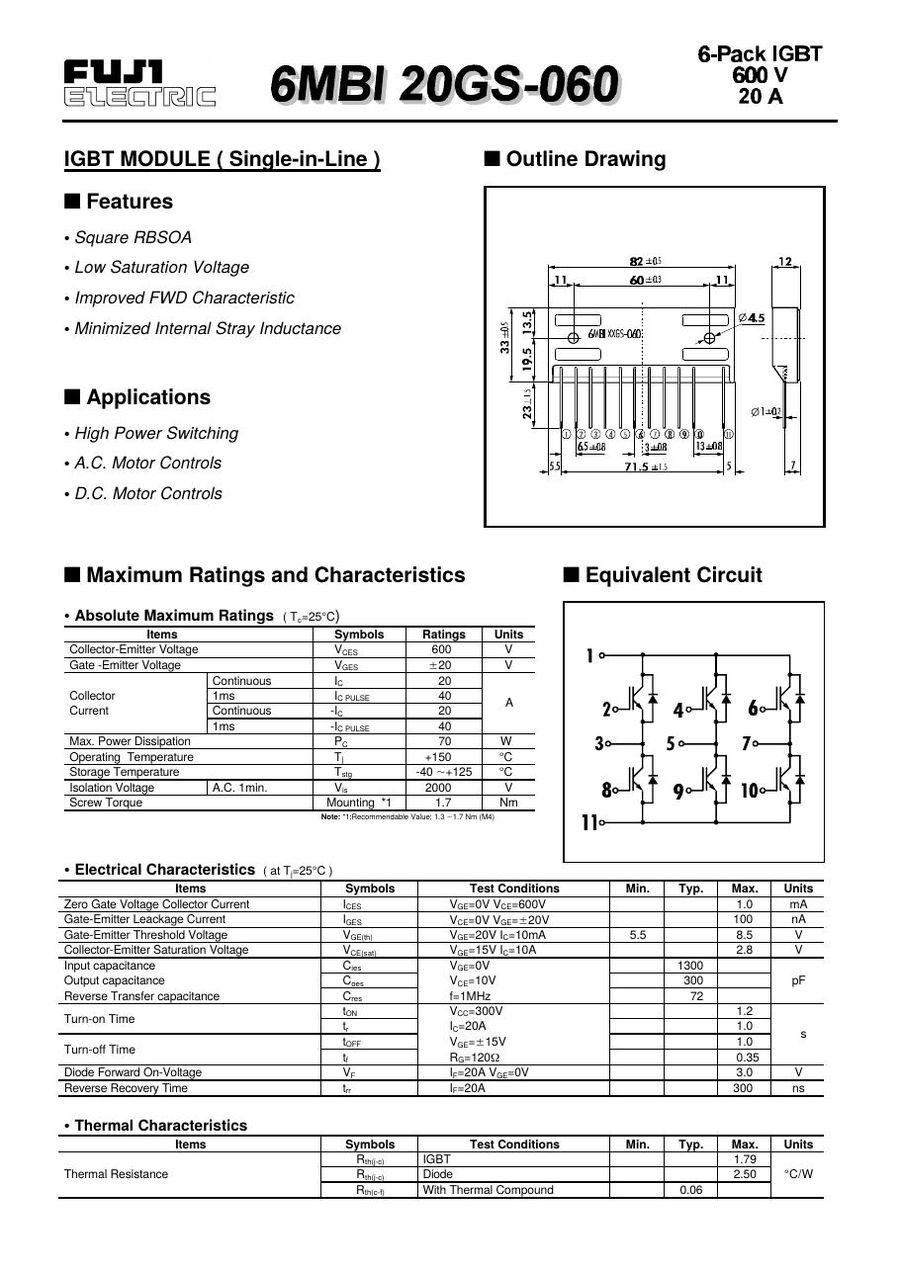

Datasheet	Available on this page (PDF)

6MBI20GS-060 Video

Technical document (PDF)  |  Request a quote for 6MBI20GS-060 (reply within 24 hours)
