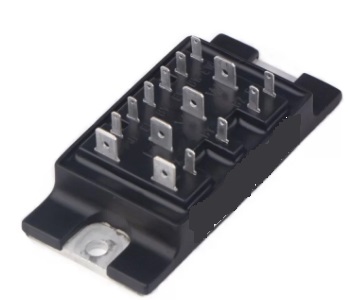

6MBI10L-120 Fuji Electric - Darlington Module

6MBI10L-120 Description

The Fuji Electric 6MBI10L-120 is an IGBT module, rated for 1200 V and 10 A. The module contains six switches arranged as a three-phase bridge (6-in-1). Typical uses include motor drives, servo amplifiers, induction heating, welding power sources and grid-tie inverters. Many of these parts are still in service in machines built years ago, and a direct replacement is often the fastest way to get one running again.

USComponent has been supplying power semiconductors since 2001, including discontinued and hard-to-find part numbers. Send us an RFQ for the 6MBI10L-120 and we will reply with price, condition and lead time. Please check the manufacturer's datasheet to confirm ratings, package and pin-out before you order.

Target Applications

Fuji Electric 6MBI10L-120 is used for high-power traction inverters and choppers, medium-voltage motor drives, static VAR compensators and other high-power converters.

Key Specifications

Manufacturer	Fuji Electric
Configuration	Six-pack / three-phase bridge (6-in-1)
VCES	1200 V
IC nom	10 A
Similar-rating parts	BSM10GD120DN2 (same nominal voltage and current rating, for reference only. Package, pinout and characteristics may differ; please compare datasheets to determine suitability)
