6DI75A-050 Fuji Electric - Power Transistor Module

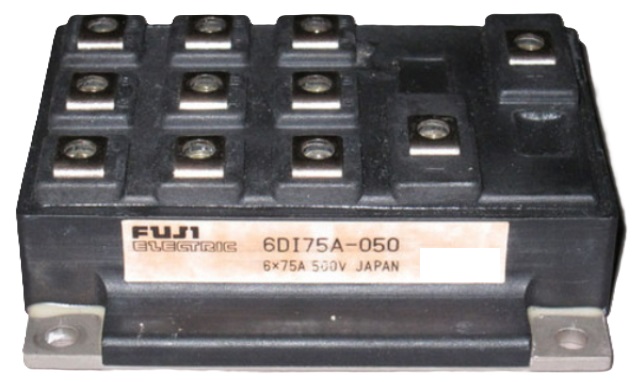

6DI75A-050 Description

Fuji Electric 6DI75A-050 is a Darlington transistor module rated at 600 V and 75 A. Modules of this type were widely used in motor drives, UPS units and power supplies, and many are still running in older equipment today.

Looking for a replacement 6DI75A-050? USComponent can quote new and hard-to-find stock and ships worldwide. Request a quote for pricing and lead time, and double-check the datasheet to make sure it fits your application.

Summary of Features

6DI75A-050 is a 600V 75A Darlington Module.

Target Applications

Fuji Electric 6DI75A-050 is used for AC Motor Control and Uninterruptible Power Supply.

Key Specifications

Manufacturer	Fuji Electric
Configuration	Six-pack power transistor module (6 transistors + 6 free-wheeling diodes), terminals insulated from mounting plate
VCBO / VCEO	600 V / 600 V
VCEO(sus)	450 V
IC	75 A (continuous)
Collector power dissipation	350 W
hFE min.	100 @ 75 A, VCE = 5 V
Switching time max.	ton 1.5 µs / tstg 12 µs / tf 3 µs
Package	M603
Weight	450 g
