6DI15A-050 Fuji Electric - Power Transistor Module

6DI15A-050 Description

6DI15A-050 is a 600 V, 15 A power transistor (bipolar darlington) module made by Fuji Electric. The module contains six switches arranged as a three-phase bridge (6-in-1). It was a workhorse in drives and power supplies before IGBTs took over, and it is still needed to repair that equipment.

USComponent is a BBB A+ accredited distributor that specializes in power modules and industrial components, new and legacy. Ask us for a quote on the 6DI15A-050; we ship worldwide. Please verify the ratings and package against the manufacturer's datasheet first.

Summary of Features

Target Applications

Fuji Electric 6DI15A-050 is used for AC Motor Controls and Uninterruptible Power Supply.

Key Specifications

6DI15A-050 is a 500 V, 15 A power transistor (bipolar Darlington) module, six-pack configuration. Source: manufacturer datasheet.

Parameter	Value
Product type	Power transistor (bipolar Darlington) module
Configuration	Six-pack
Collector-emitter voltage (VCES)	500 V
Collector current (IC)	15 A

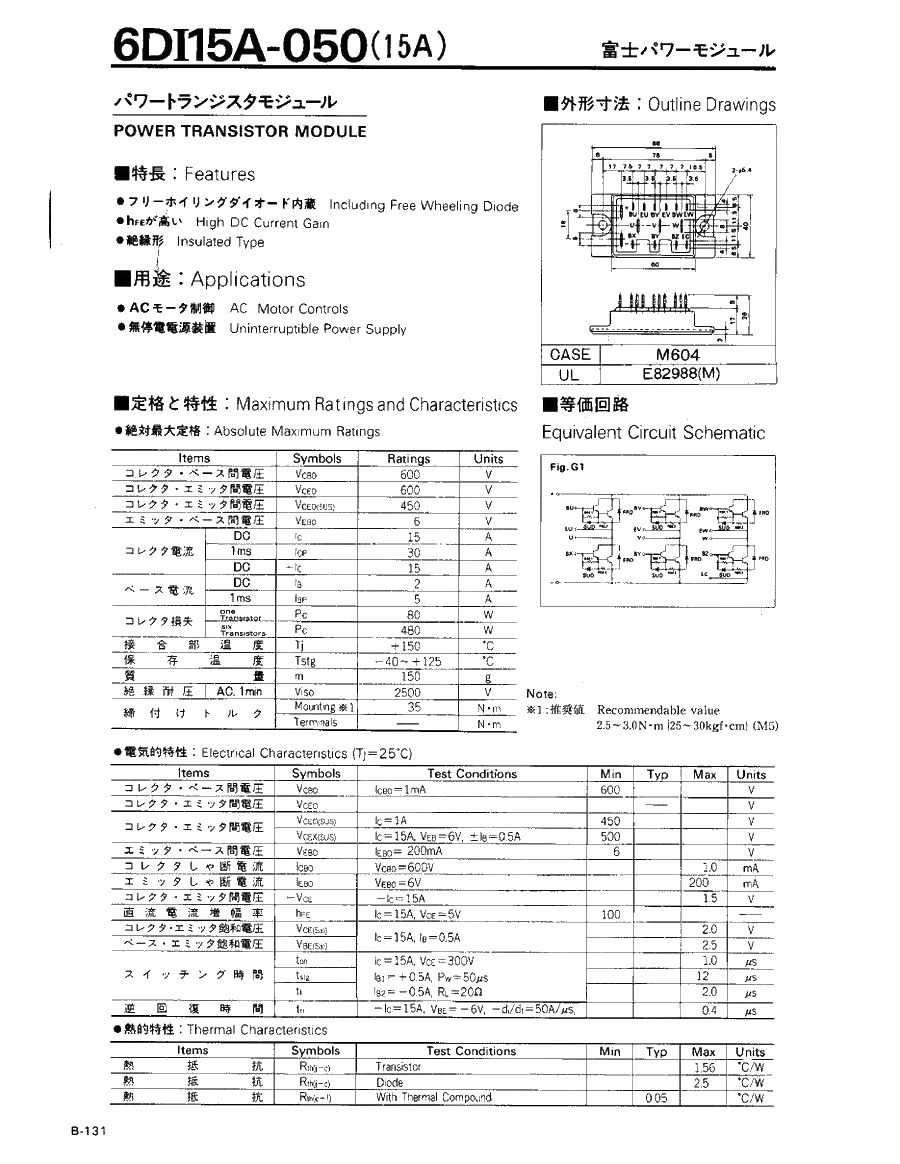

Datasheet	Available on this page (PDF)
