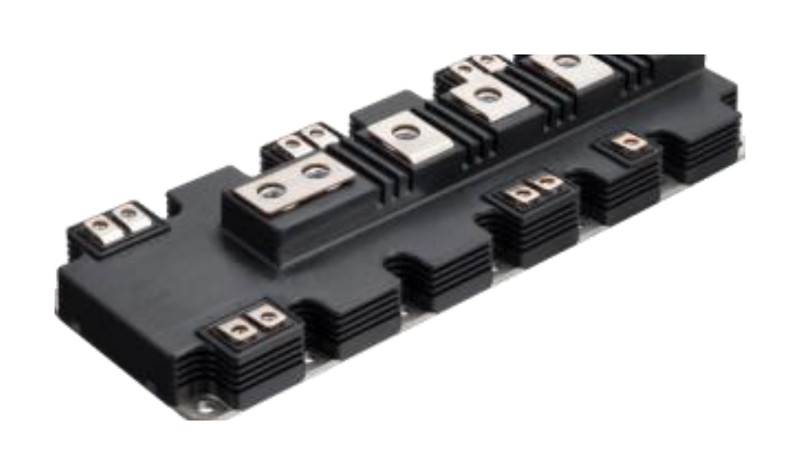

4MBI900VB-120RA-50 Fuji Electric - IGBT Module

4MBI900VB-120RA-50 Description

4MBI900VB-120RA-50 is a 1,200 V / 900 A T-type 3-level 4-in-1 IGBT module from Fuji Electric, V series, with ±600 V / 900 A RB-IGBT AC switch. Datasheet ratings: IC 900 A continuous at Tc = 100 °C (1,200 A at 25 °C), 1,800 A pulse, VCE(sat) 1.95 V typ. at 900 A, 4,000 VAC isolation. Package M404, screw terminals, 89 x 250 mm. Typical applications: Inverter for motor drive; Uninterruptible power supply; Power conditioner for PV, wind turbine.

USComponent supplies 4MBI900VB-120RA-50 and other Fuji Electric IGBT modules, including discontinued types. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

Target Applications

Fuji Electric 4MBI900VB-120RA-50 is used for Inverter for motor drive, Uninterruptible power supply and Power conditioner for PV, wind turbine.

Key Specifications

4MBI900VB-120RA-50 is a 1,200 V / 900 A T-type 3-level 4-in-1 IGBT module from Fuji Electric, V series, with ±600 V / 900 A RB-IGBT AC switch. Source: Fuji Electric datasheet (2019/04).

Parameter	Value
Manufacturer	Fuji Electric
Product type	IGBT module
Series	V series (6th generation)
Configuration	4-in-1 T-type NPC 3-level (IGBT + RB-IGBT AC switch)
Collector-emitter voltage (VCES, inverter part)	1,200 V
Collector-emitter voltage (VCES, AC switch RB-IGBT)	±600 V
Collector current IC (continuous, Tc = 25 °C, inverter part)	1,200 A
Collector current IC (continuous, Tc = 100 °C, inverter part)	900 A (duty 88%)
Collector current IC pulse (1 ms, inverter part)	1,800 A
Collector current IC (continuous, Tc = 88 °C, AC switch)	900 A (duty 56%)
Collector current IC pulse (1 ms, AC switch)	1,800 A
Collector power dissipation (Pc, 1 device, inverter part)	3,950 W
VCE(sat) (terminal), IC = 900 A, VGE = 15 V, Tj = 25 °C, inverter part	1.95 V typ. / 2.45 V max.
VCE(sat) (terminal), IC = 900 A, VGE = 15 V, Tj = 25 °C, AC switch	2.55 V typ. / 3.20 V max.
Gate-emitter threshold voltage VGE(th), inverter part	6.0 / 6.5 / 7.0 V (min. / typ. / max.)
Junction temperature (Tj, inverter part)	175 °C
Operating junction temperature (Tjop, under switching, inverter part)	150 °C
Junction temperature Tj / Tjop (AC switch)	150 °C / 125 °C
Storage temperature (Tstg)	-40 to +125 °C
Isolation voltage (Viso, AC 1 min)	4,000 VAC
Screw torque, mounting	M5: 3.0 - 6.0 N·m (recommended)
Screw torque, main terminals	M8: 8.0 - 10.0 N·m (recommended)
Screw torque, sense terminals	M4: 1.8 - 2.1 N·m (recommended)
Package	M404
Terminals	Screw terminals
Size	89 x 250 mm
Weight (typ.)	1,300 g
Supply status (Fuji)	Available
Applications (datasheet)	Inverter for motor drive; Uninterruptible power supply; Power conditioner for PV, wind turbine
Datasheet	Available on this page (PDF)
