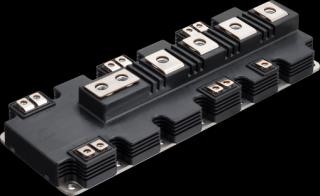

4MBI600VC-120-50 Fuji Electric - IGBT Module

4MBI600VC-120-50 Description

4MBI600VC-120-50 is a 1200 V / 600 A 3-level (T-type NPC) IGBT module from Fuji Electric, V series (6th-Generation). Typical applications: inverter for Motor Drives, Uninterruptible Power Supply, Power conditioner for PV, Wind Turbines.

USComponent supplies 4MBI600VC-120-50 and other Fuji Electric IGBT modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

Target Applications

Fuji Electric 4MBI600VC-120-50 is used for Inverter for Motor Drives, Uninterruptible Power Supply, Power conditioner for PV, Wind Turbines.

Key Specifications

4MBI600VC-120-50 is a 1200 V / 600 A 3-level (T-type NPC) IGBT module from Fuji Electric, V series (6th-Generation). Source: Fuji Electric datasheet and product data.

Parameter	Value
Manufacturer	Fuji Electric
Product type	IGBT module
Series	V series (6th-Generation)
Configuration	3-level (T-type NPC)
Collector-emitter voltage (VCES)	1200 V
Collector current (IC)	600 A
Package	M404 (1-leg I-Type)
Terminal type	Screw terminals
Size	89 x 250 mm
Net mass	1300 g
Supply status (Fuji)	Available
Datasheet	Available on this page (PDF)
