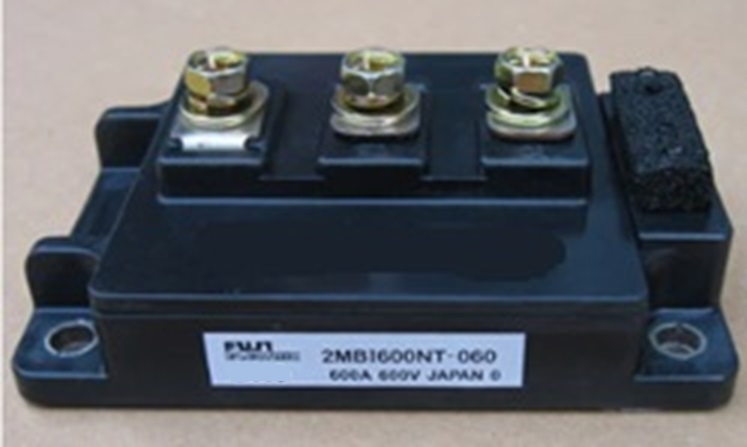

2MBI600NT-060 Fuji Electric - IGBT power module

2MBI600NT-060 Description

Fuji Electric makes the 2MBI600NT-060, a 600 V, 600 A IGBT module. It is built with two switches in a half-bridge (2-in-1) arrangement. Modules like this do the heavy switching in motor drives, UPS systems, induction heaters and renewable-energy inverters. If you are repairing older equipment, we can usually find this exact part, including date codes that are no longer in production.

USComponent has sourced power semiconductors for maintenance teams and OEMs since 2001. For price and availability of the 2MBI600NT-060, send us a request for quote. Please confirm the specifications against the manufacturer's datasheet before purchase.

Summary of Features

Target Applications

Fuji Electric 2MBI600NT-060 is used for Inverter for Motor Drive, AC and DC Servo Drive Amplifier, Uninterruptible Power Supply, Industrial Machines, such as Welding Machines.

Key Specifications

Manufacturer	Fuji Electric
Configuration	Dual (2-in-1) IGBT module, N-Series
VCES	600 V
IC	600 A (continuous)
IC pulse	1200 A (1 ms)
VCE(sat)	2.9 V @ 600 A
Collector power dissipation	2100 W
Isolation voltage	AC 2500 V (1 min)
Mounting torque	3.5 N·m
Terminal torque	4.5 N·m
